3.6W Farm Egg Packing Machine for Automatic Tray Packing
This 36,000 eggs/hour farm packer is designed for layer farms and egg collection rooms. It receives eggs from a central egg collection line or manual feeding area, adjusts egg orientation, supplies trays automatically, and places eggs into trays for smoother farm-side packing.
- Overview
- Recommended Products
- Soft egg orientation adjustment supports better tray placement.
- Feeding platform with pressure control helps manage egg input volume.
- Automatic tray feeder sends trays to the packing position.
- Missing-tray detection helps reduce packing interruptions.
- Detachable rollers support cleaning and maintenance.
- Cover-opening safety protection automatically stops the machine during operation.
- Layer farms with central egg collection lines.
- Farm egg packing rooms using manual or conveyor feeding.
- Egg collection points that need tray packing before transport.
- Projects requiring compact farm-side packing equipment.
- Farms planning to connect packing with tray stacking or downstream handling.
3.6W Farm Egg Packing Machine for Automatic Tray Packing
This 36,000 eggs/hour farm packer is designed for layer farms and egg collection rooms. It receives eggs from a central egg collection line or manual feeding area, adjusts egg orientation, supplies trays automatically, and places eggs into trays for smoother farm-side packing.
Designed processing capacity for farm-side egg tray packing.
Six-row infeed structure supports stable egg transfer into the packing section.
Tray feeder sends empty trays to the packing position with missing-tray detection.
Integrated control, counting, parameter adjustment and emergency stop functions.
A Practical Farm-Side Packing Solution
The machine is suitable for farms that need to reduce manual egg tray packing work after egg collection. It focuses on egg receiving, orientation adjustment, tray supply, automatic tray packing and packed tray buffering.
Complete Line Layout
The layout includes egg feeding, orientation adjustment, tray feeding, automatic tray packing, tray stacking and conveyor buffering sections.
Compact Farm Configuration
Designed for farm packing rooms with a footprint of about 1539 × 6688 mm and a height of 1960 mm.
Flexible Feeding Method
The machine can work with a central egg collection line or manual egg feeding, depending on the farm layout.
From Egg Feeding to Tray Output
Eggs enter the machine through the feeding platform, pass through the orientation adjustment section, and are automatically transferred into trays. The output conveyor can buffer up to 6 full trays with flow control.

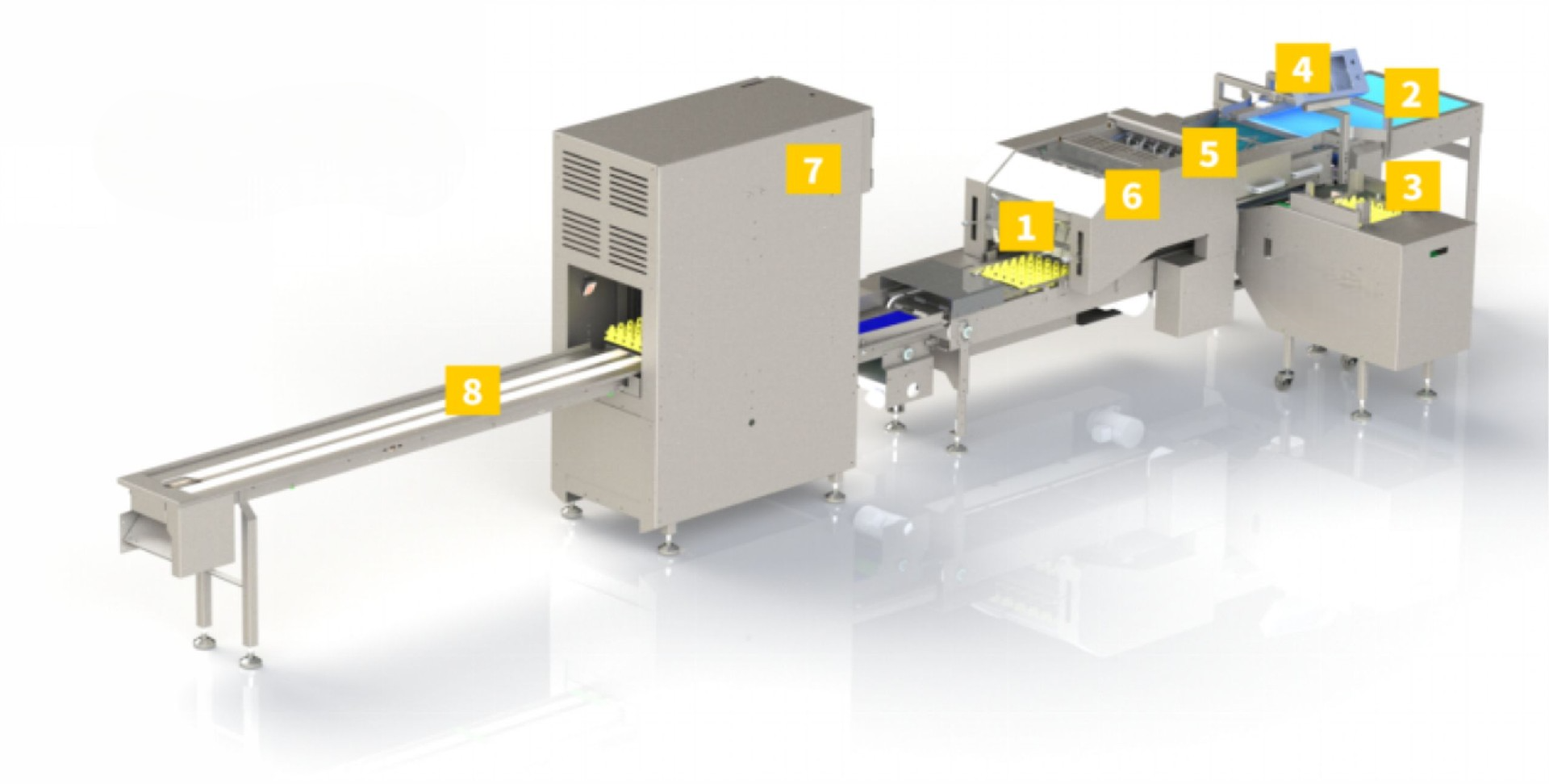

Key Sections of the 3.6W Farm Packer
The machine uses a simple mechanical structure with fewer moving parts where possible, using natural flow and gravity to move eggs through the line.
Egg Feeding Platform
Equipped with pressure control to manage egg flow smoothly and transfer eggs to the packing process in an orderly way.
Orientation Adjustment
Adjusts individual eggs with soft contact material and compact drop spacing to improve tray placement quality.
Automatic Tray Feeder
Automatically delivers trays to the packing station. Tray changeover is designed to be convenient, with missing-tray detection and multi-layer tray buffering.
Touch Control System
Integrates control, counting, one-button start/stop, detection and parameter adjustment functions through an intuitive interface.
Detachable Rollers
During cleaning and maintenance, rollers can be removed quickly and safely to make routine service easier.
Tray Buffer Conveyor
The conveyor is used to buffer up to 6 full trays and is equipped with flow control for smoother output handling.
Need a 36,000 Eggs/Hour Farm Packer Layout?
Tell us your egg output, current egg collection method, tray type, packing room size and downstream handling requirements. GREAT FARM can help match the machine layout to your farm project.
3.6W Farm Packaging Machine Parameters
The following parameters are based on the provided product parameter document. Final configuration should be confirmed before quotation and production.
| Product Name | 3.6W Farm Egg Packing Machine / 36,000 Eggs/Hour Farm Packer |
|---|---|
| Processing Capacity | 36,000 pieces/hour |
| Infeed Rows | 6 rows |
| Voltage / Frequency | 220V, single phase, 50Hz |
| Maximum Power | 2.0 kW with tray stacker; 1.4 kW without tray stacker |
| Footprint | 1539 × 6688 mm |
| Height | 1960 mm |
| Feeding Method | Central egg collection line / manual egg feeding |
| Operator | One person for inspection and one person for discharging |
| Tray Buffer | Conveyor can buffer up to 6 full trays with flow control |
| Safety Function | When the cover is opened during operation, the machine stops automatically for operator safety |
| Control Function | Touch control screen, integrated control and counting, one-button start/stop, detection, parameter adjustment and emergency stop |
Simple and Practical Packing Workflow
The line is designed to help farms move eggs from collection to tray packing with fewer manual handling steps.
Egg Feeding
Eggs enter from the central collection line or manual feeding platform.
Orientation Adjustment
Eggs are adjusted individually to improve alignment before tray packing.
Automatic Tray Supply
The tray feeder delivers empty trays to the packing position.
Tray Packing & Output
Eggs are packed into trays and full trays move to the buffer conveyor.
Suitable for Layer Farms and Egg Collection Rooms
This 36,000 eggs/hour farm packer is suitable for farms that need practical tray packing automation after egg collection, especially where labor reduction and packing consistency are important.
Information Needed Before Quotation
To recommend the correct farm packer configuration, the machine should be matched with the real farm egg collection system and packing room layout.
Egg Output
Confirm your hourly egg output, daily working hours and number of layer houses connected to the packing room.
Feeding Method
Confirm whether eggs enter from a central egg collection line or through manual feeding.
Tray Specification
Confirm tray size, tray material and whether automatic tray stacking is required.
Frequently Asked Questions
Common questions before choosing a 36,000 eggs/hour farm egg packing machine.
1. What is the capacity of this farm packer?
The designed processing capacity is 36,000 pieces per hour, with 6 infeed rows.
2. Can it connect with a central egg collection line?
Yes. The feeding method supports a central egg collection line or manual egg feeding, depending on the farm layout.
3. Does it include an automatic tray feeder?
Yes. The tray feeder automatically sends trays to the packing position and supports missing-tray detection and multi-layer tray buffering.
4. How many operators are needed?
The reference configuration requires one person for inspection and one person for discharging.
5. Does the machine include grading or washing?
No. This machine is mainly for farm-side tray packing. Washing, crack detection, dirt detection, weighing and grading require additional equipment.
6. What is the power requirement?
The reference voltage is 220V, single phase, 50Hz. Maximum power is 2.0 kW with tray stacker and 1.4 kW without tray stacker.
7. What information should I provide for a quotation?
Please provide egg output per hour, egg feeding method, tray type, packing room size, destination country and whether tray stacking or downstream equipment is required.
