Chick Pneumatic Continuous Injector Chicken Duck Poultry Vaccination Automatic Syringe Machine
A pneumatic automatic injection machine designed for chicks, ducklings, goslings and other young poultry. It supports single-liquid or two-liquid injection, adjustable dose setting, counting and stable operation with compressed air.
- Overview
- Recommended Products
- Compressed air source with recommended oil-water filtration or purification at the compressor outlet.
- Main needle and auxiliary needle design for different liquid combinations.

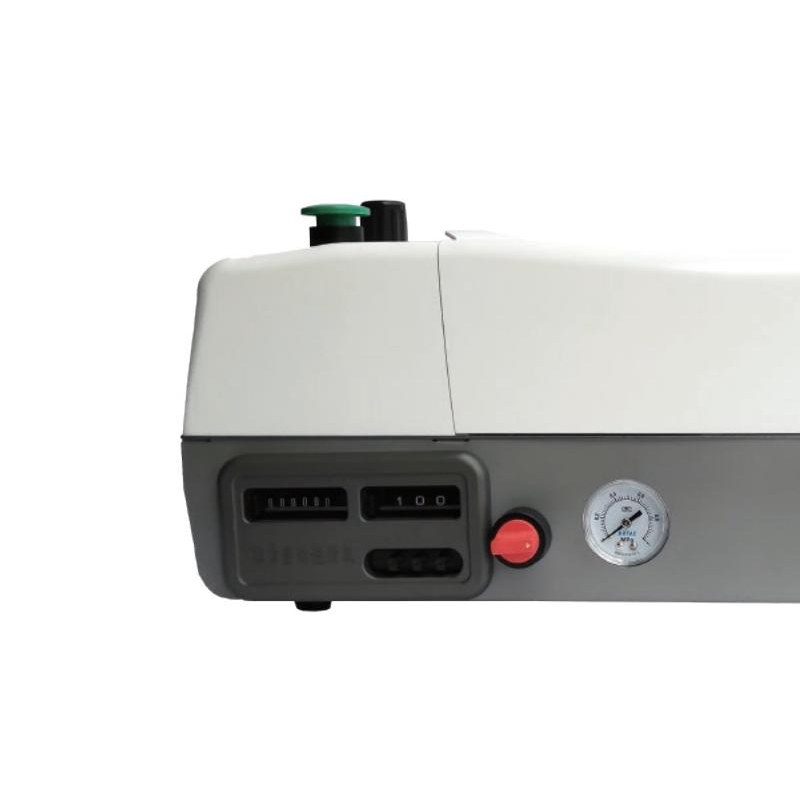

- Visible pressure gauge and counter window for easier process checking.
- Stainless steel and medical rubber components used in key contact parts.
- Turn off the main air switch before replacing accessories, cleaning or maintenance.
- Children should not touch or use the equipment.
- Do not touch the sliding base area or put body parts into the operation area during use.
- After work, clean the injection seat and relevant parts, and check seals, one-way valves and springs regularly.
Chick Pneumatic Vaccine Injection Machine
A pneumatic automatic injection machine designed for chicks, ducklings, goslings and other young poultry. It supports single-liquid or two-liquid injection, adjustable dose setting, counting and stable operation with compressed air.
Designed for Standardized Chick Vaccination Workflows
The machine uses compressed air as the driving source. It is intended for poultry hatcheries, breeder farms, poultry farms, vaccine manufacturers, pharmaceutical suppliers and vaccine sellers that need a repeatable young-bird injection process.
Automatic Injection
After the bird is placed correctly at the injection position, the equipment can complete the injection process through the micro switch mechanism, helping reduce manual dosage variation.
Single or Dual Liquid
The structure supports one-liquid or two-liquid use in the same equipment. Injection needle configuration should be selected according to the vaccination program and actual operation requirements.
Counting & Preset Quantity
The counter system can display total inoculation quantity and preset vaccination quantity, making batch work easier to manage during hatchery vaccination operations.
Clear Mechanical Layout for Daily Farm Use

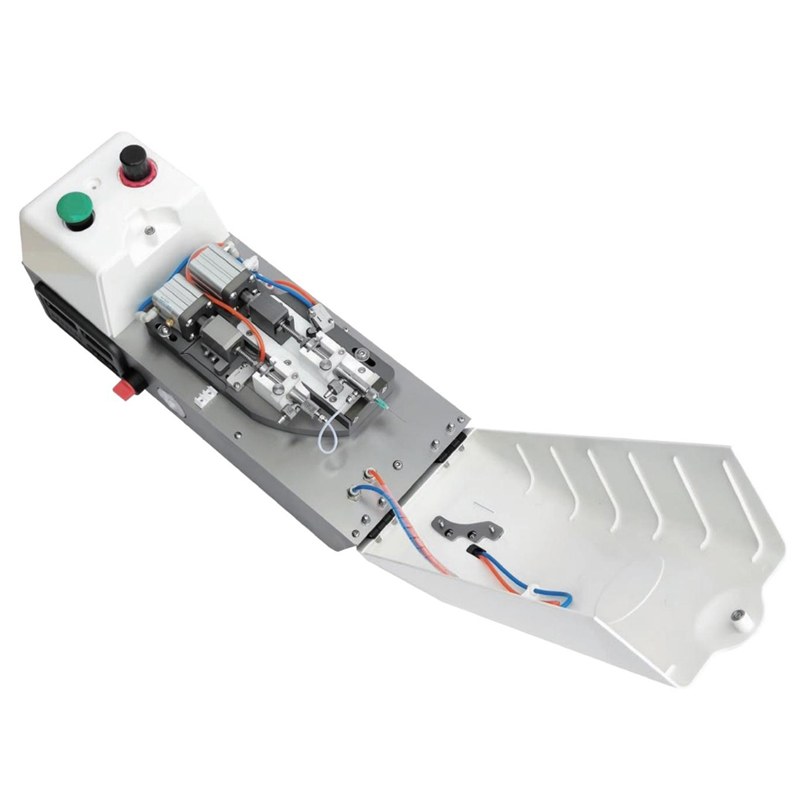

The machine integrates air pressure control, injection seat adjustment, main and auxiliary needle assemblies, dose adjustment components, counters and an injection panel switch. The top cover can be opened for inspection and maintenance.
Need a suitable setup for your hatchery vaccination line?
Tell us your bird type, vaccine type, expected daily volume and workflow arrangement. We can help recommend the suitable machine configuration and operation layout.
Practical Steps for Chick Injection
The following workflow is summarized for page display. Operators should follow the official manual, farm biosecurity rules and local veterinary requirements during actual vaccination.

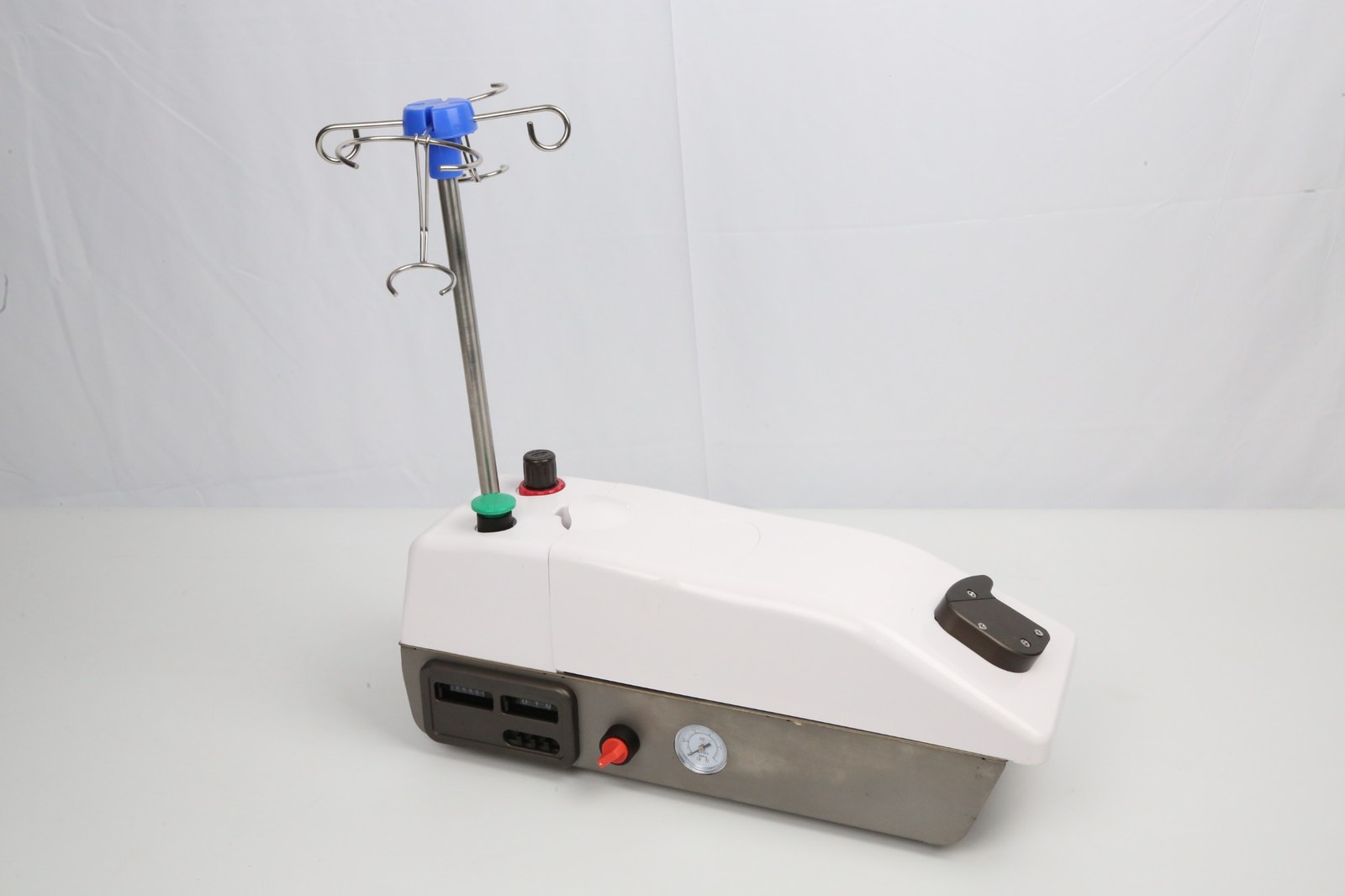

Install Infusion Rack
Install the infusion pole and medicine bottle or bag, then connect the liquid inlet to the injection needle through the flexible tube.
Adjust Position
Adjust the injection seat and panel switch position according to the required bird size and injection position.
Set Air Pressure
Connect compressed air, open the main air switch, then adjust working pressure within the recommended range before operation.
Vaccinate & Count
Place the young bird correctly at the injection switch position. The machine completes the injection and the counter records the quantity.
Parameters from Product Instruction File
The parameters below are presented conservatively from the supplied English instruction material. Custom dose settings should be confirmed before production or purchase.
| Item | Parameter |
|---|---|
| Product Name | Automatic injection machine for chicks |
| Model | GF-ZSJ-20A3 |
| Power Source / Injection Source | Pneumatic compressed air, 0.37–0.43 MPa |
| Main Needle Injection Dose | 0.10 ml–0.35 ml, customizable according to user needs |
| Side Needle Injection Dose | 0.05 ml–0.25 ml, customizable according to user needs |
| Injection Dose Accuracy | ±0.01 ml |
| Vaccine Type | Water-based vaccine and oily vaccine |
| Device Injection Speed | 2500–6000 birds/hour, depending on operator skill and working conditions |
| Component Material | Medical rubber and stainless steel |
| Product Size | 520 × 210 × 210 mm, excluding infusion rack |
| Packing Box Size | 570 × 235 × 300 mm |
| Net Weight | 8.5 kg |
| Product Weight | 9.6 kg |

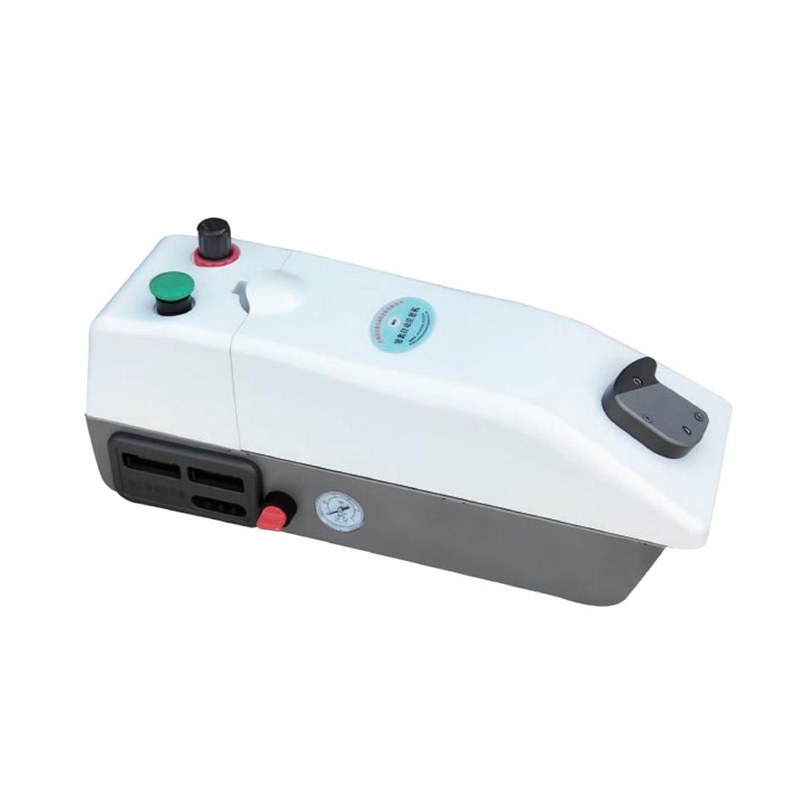

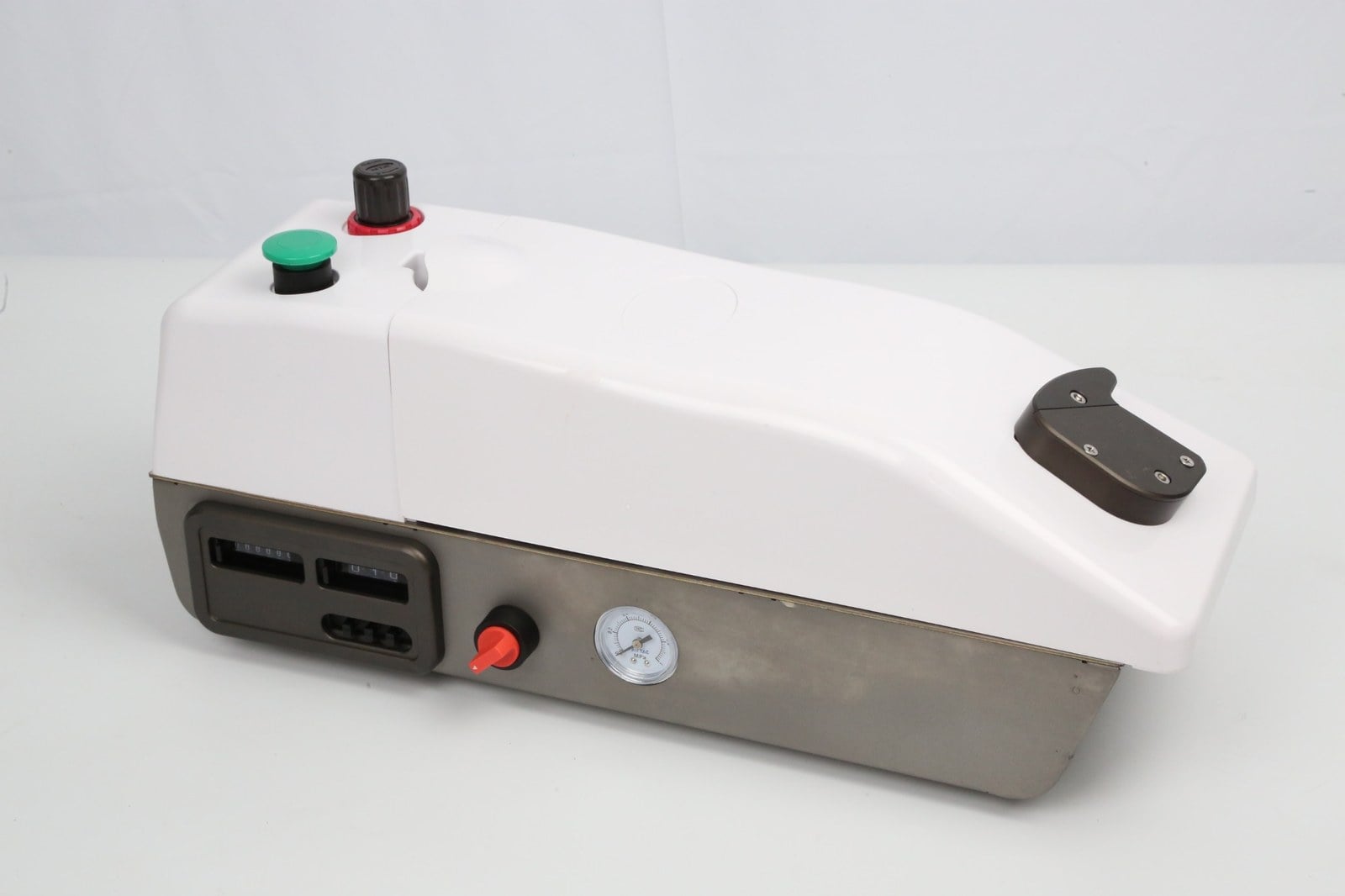

Machine Appearance, Internal Structure & Key Parts

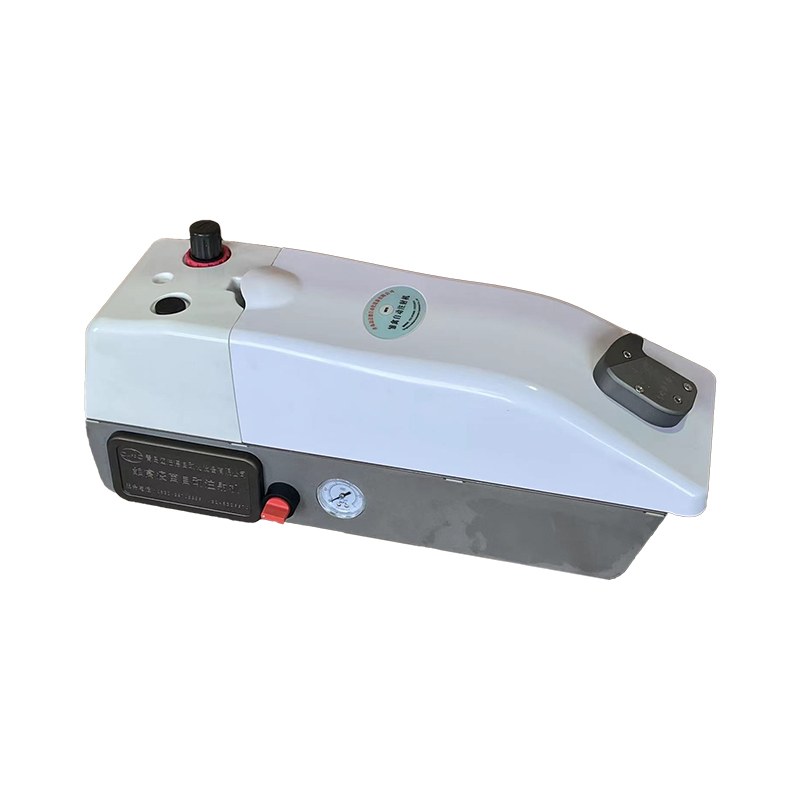

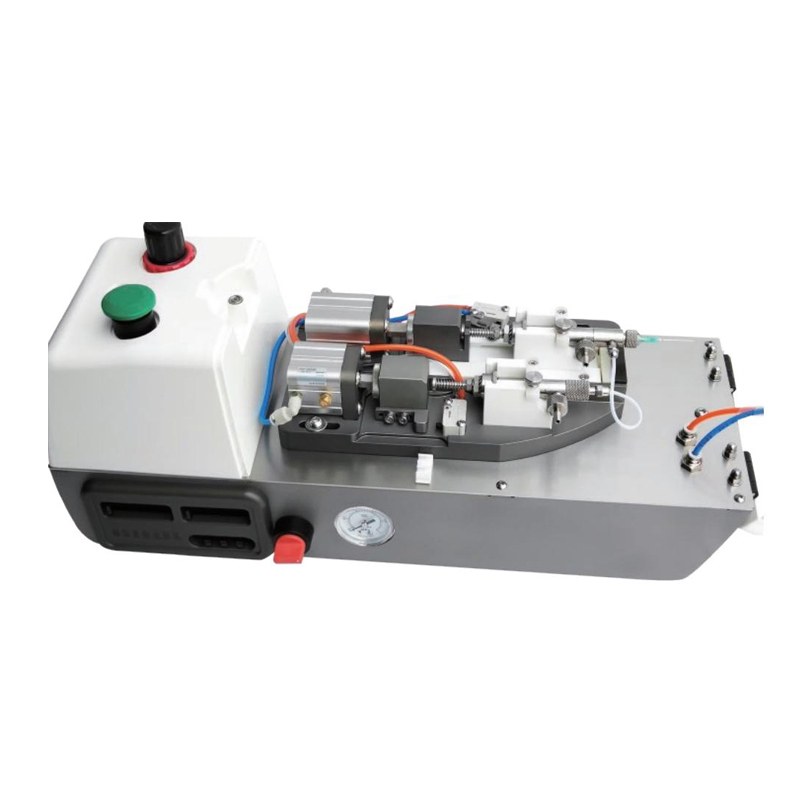

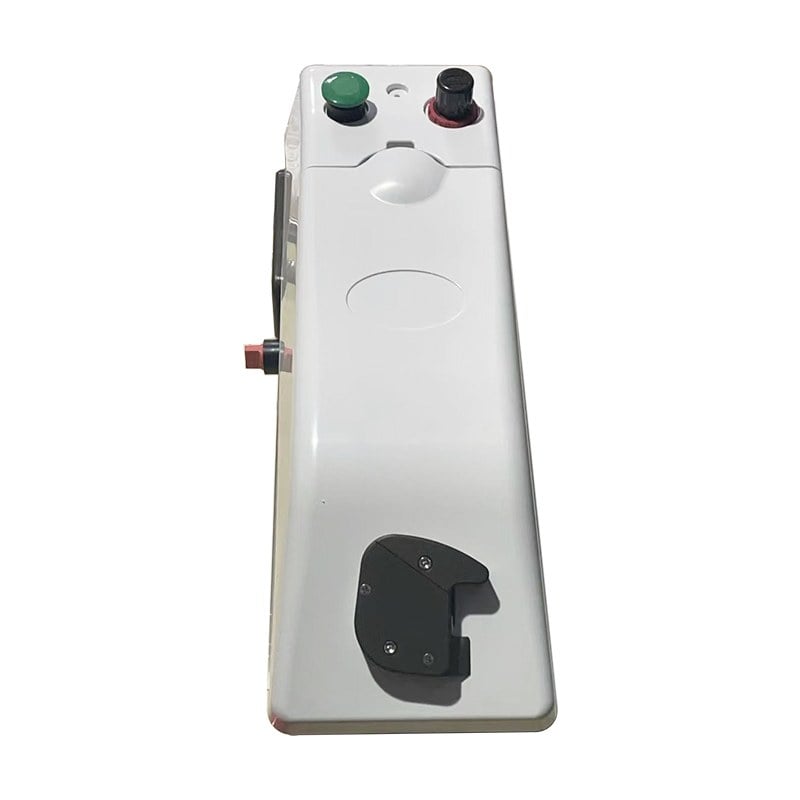

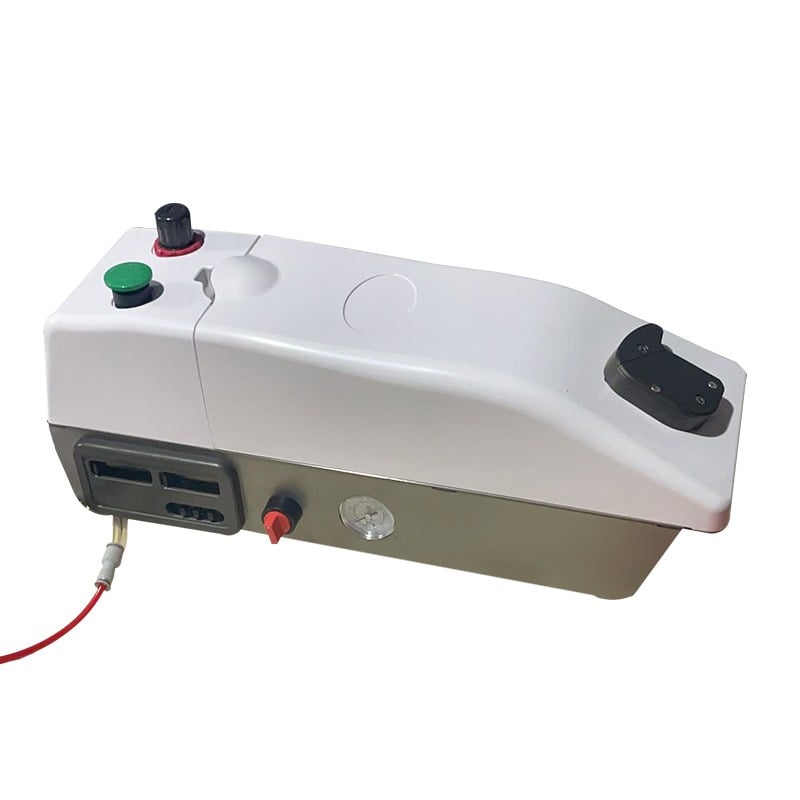

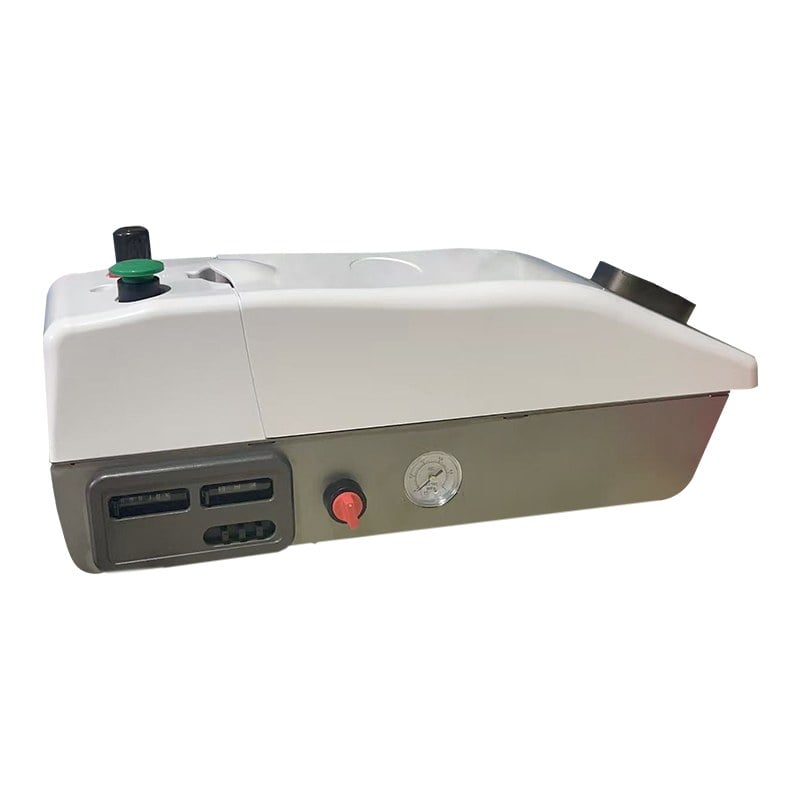

The uploaded product photos show the exterior housing, infusion rack, counter and pressure gauge area, top operation area and internal pneumatic structure.
Practical Notes for Safe Operation
This product is used with needles and compressed air. It should be operated by trained staff and cleaned after daily work. The content below is a product-page summary, not a replacement for the user manual.
For Hatchery and Young Poultry Vaccination Management
The machine is suitable for farms or service providers that need consistent vaccination handling of young poultry in batches.
Hatcheries
Supports chick vaccination before delivery, with quantity display and preset counting for batch management.
Breeder & Poultry Farms
Suitable for farms that manage chick, duckling or gosling vaccination in early-stage production workflows.
Vaccine & Service Suppliers
Useful for vaccine sellers, pharmaceutical suppliers or service teams that provide vaccination equipment solutions.
