Stainless Steel Chicken Automatic Vaccine Electric Syringe Machine for Adult Chicken
Electrical motor powered vaccination equipment for poultry of 2 weeks or older. The bird is positioned against the front injection panel and the machine completes one controlled injection cycle after proper triggering, helping farms improve consistency during batch vaccination work.
- Overview
- Recommended Products
- Suitable for poultry of 2 weeks or older; actual use depends on bird size and vaccination program.
- Supports water-based and oil-based vaccines, subject to vaccine viscosity and veterinary instructions.
- Includes vaccine bottle hanger, infusion tube, silicone tube, syringes, sensors and related accessories.
- Counter and alarm value help operators manage batch quantity during continuous operation.
- Front cover can be opened for tubing inspection, syringe maintenance and cleaning after use.
- Needle bevel direction should be checked before injection according to the operation manual.
- If there is no liquid output although the needle moves normally, the needle may need replacement.
- After use, open the front cover and dry water traces inside the machine.
- Infusion tube and syringe can be cleaned with suitable disinfecting liquid according to farm procedures.
Automatic Vaccinator for Matured Poultry
Electrical motor powered vaccination equipment for poultry of 2 weeks or older. The bird is positioned against the front injection panel and the machine completes one controlled injection cycle after proper triggering, helping farms improve consistency during batch vaccination work.
Practical equipment for mature chicken vaccination
This machine is designed for mature poultry vaccination operations where repeatable dose setting, controlled injection triggering and batch counting are needed. It is mainly used in breeding farms, layer farms, broiler farms and vaccination service scenarios.
Electric servo motor drive
Uses a 24V 3A servo motor as the driving power for repeated injection cycles, helping reduce manual syringe workload during batch operation.

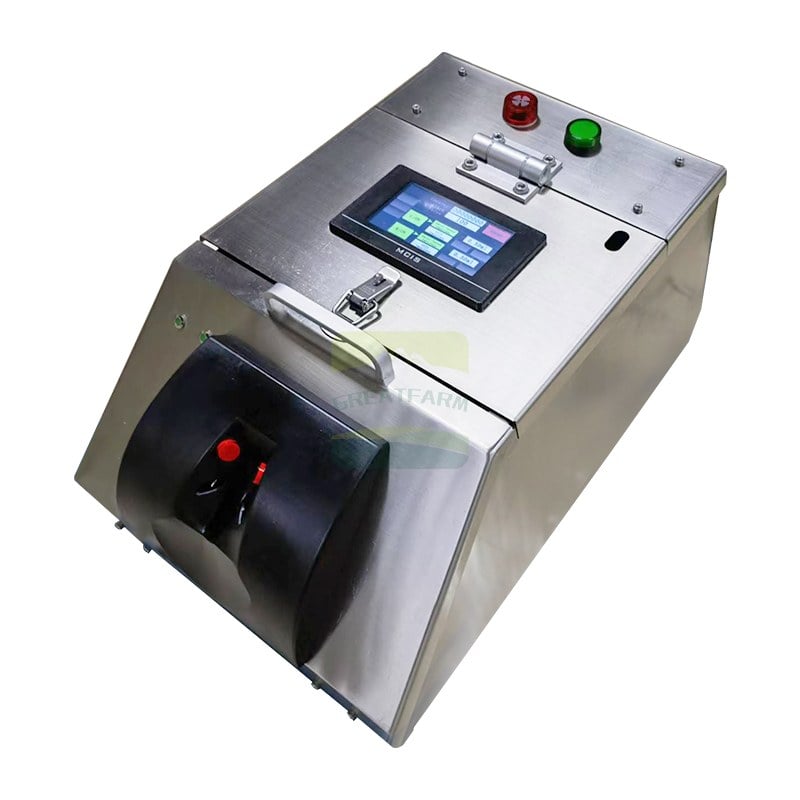

Touch screen parameter setting
The control panel supports injection count, batch alarm value, reset, left/right injection activation and dose adjustment from the screen.
Adjustable left and right injection
Left and right injection channels can be set independently, and the dose is adjusted in 0.01 ml steps within the reference dose range.

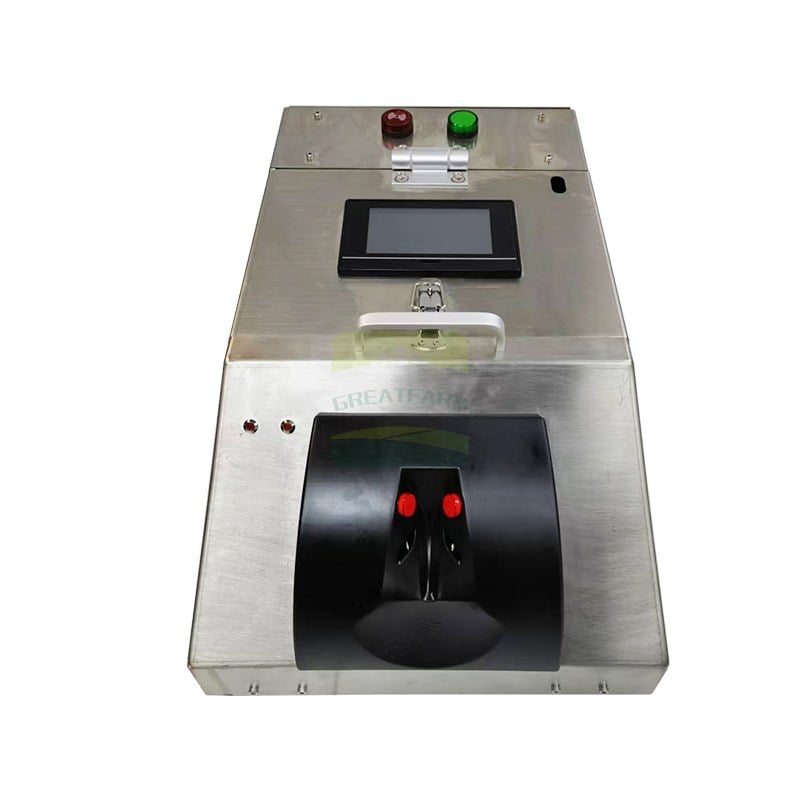

Stainless-steel body with front positioning panel
The compact body uses a stainless-steel exterior for farm cleaning requirements. The front injection panel is used to position the bird chest, while the top area includes the touch screen, indicator buttons and bottle hanger interface.
Need a suitable vaccination setup for your poultry farm?
Share your poultry age, vaccine type, target daily vaccination quantity and operating site requirements. We can help confirm whether this electric vaccinator configuration is suitable for your application.

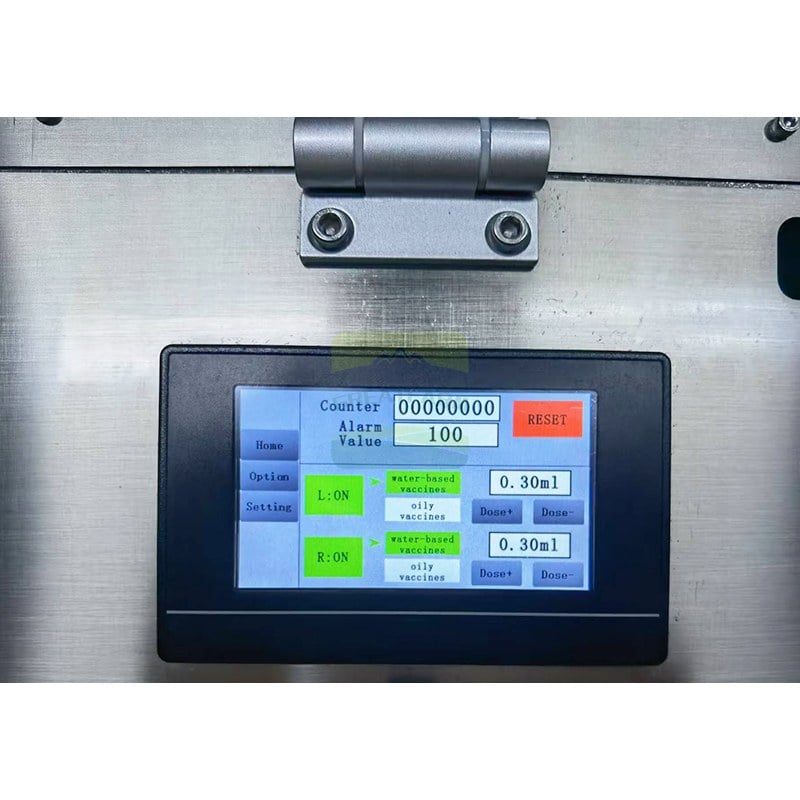

Control screen for dose and batch management
The touch screen interface is designed for basic farm operation. Operators can check total injection quantity, set an alarm value for each batch, select left/right injection channel, choose vaccine type and adjust the dose.
Counter
Displays the number of completed injections during operation.
Alarm Value
Sets the maximum quantity for a batch and gives an alarm after reaching it.
Dose + / Dose -
Adjusts dose by 0.01 ml per touch for the corresponding injection channel.
Vaccine Type
Selects water-based or oil-based vaccine setting according to use requirement.
Recommended operation flow
Actual farm performance depends on bird size, operator handling skill, vaccine type, needle condition and on-site workflow. The following steps are based on standard operation logic.
Check components
Before installation, check the machine body, accessories, tubing, syringes, sensors and power adapter for damage or missing parts.
Connect vaccine line
Install the vaccine bottle hanger, connect the infusion tube to the syringe inlet and remove air from the liquid line before use.
Set parameters
Use the touch screen to set the batch alarm value, left/right injection status, vaccine type and required injection dose.
Position and inject
Hold the bird firmly and place the chest against the front injection panel. When the position is correct, one injection cycle is completed.
Reference technical parameters
The following values are reference specifications from the product instruction manual. Final configuration should be confirmed before order production.
| Product Name | Automatic Vaccinator for Matured Poultry, Electrical Motor Powered |
| Applicable Poultry | Poultry of 2 weeks or older; actual use depends on breed, body size and vaccination program. |
| Driving Power | 24V 3A servo motor |
| Power Source | AC 220V / 110V input; 24V DC working power |
| Injection Dose | 0.15–0.55 ml, adjustable according to customer requirement and vaccine guidance |
| Injection Accuracy | Reference value ±0.01 ml under suitable working conditions |
| Suitable Vaccines | Water-based or oil-based vaccines |
| Key Component Materials | Stainless steel, medical silicone tube and nylon tube |
| Maximum Injection Rate | Up to 3000 birds per hour as reference; actual output depends on operator skill and handling process |
| Net Weight | About 22 kg |
| Main Accessories | Machine body, touch screen, vaccine bottle hanger, springs, rubber gaskets, valve core, hex wrench, needles #9×38, photoelectric sensors, graduated cylinder, infusion tubes, silicone rubber tubes, disposable syringes and power adapters |

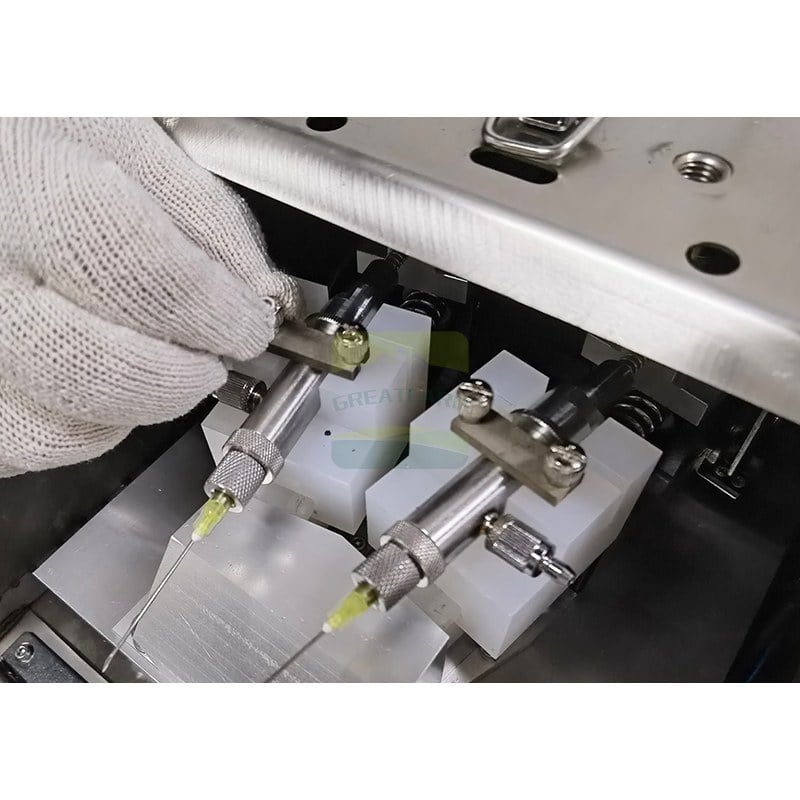

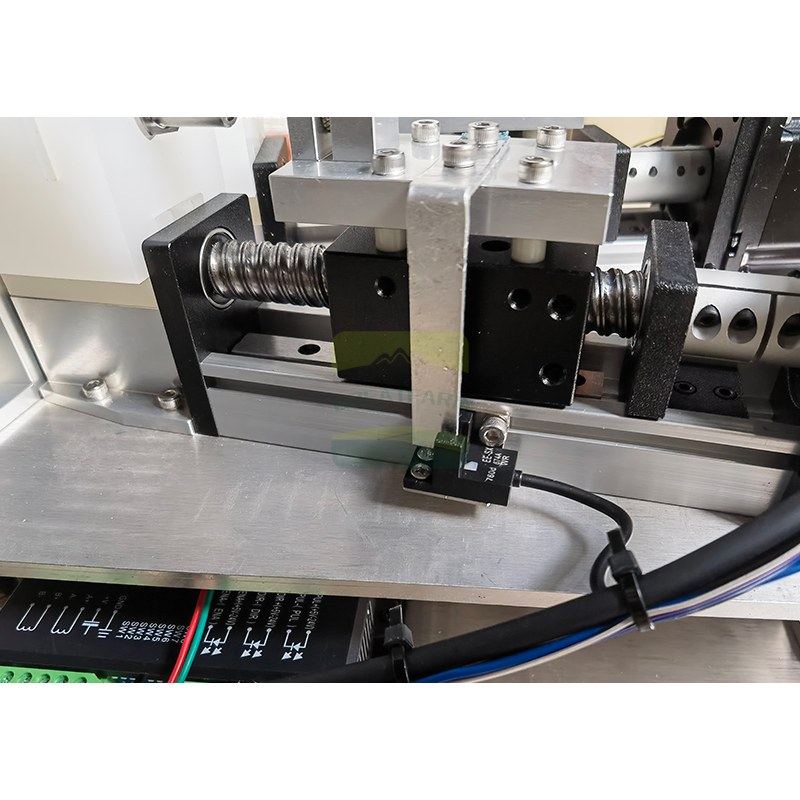

Internal injection structure and maintenance access
The front cover can be opened to access the syringe assembly, tubing and injection components. The manual recommends checking needle condition, removing air from the tube before operation, and cleaning or disinfecting the internal line after use.
Product structure details

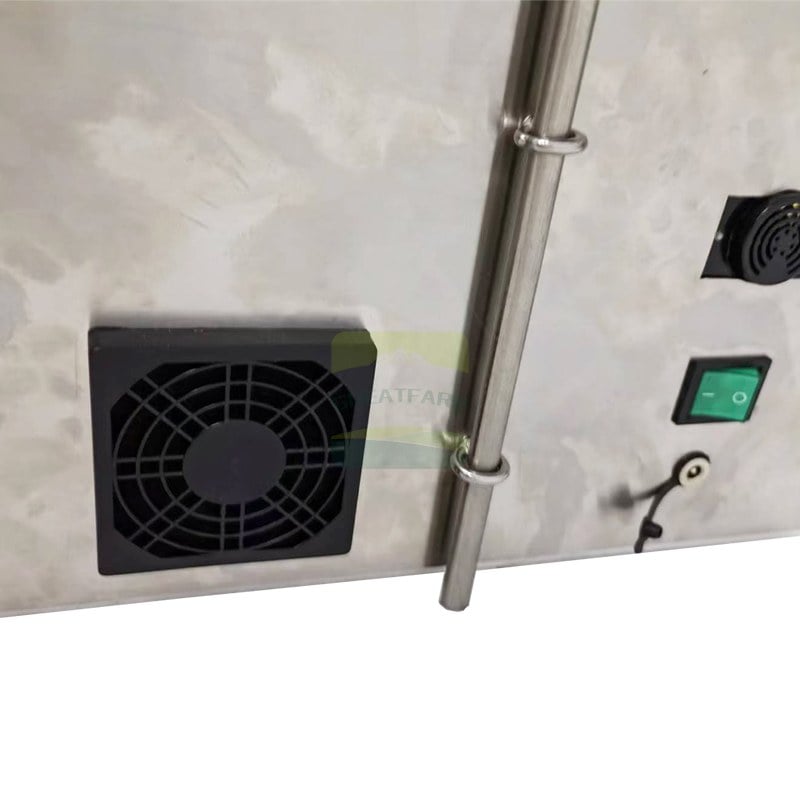

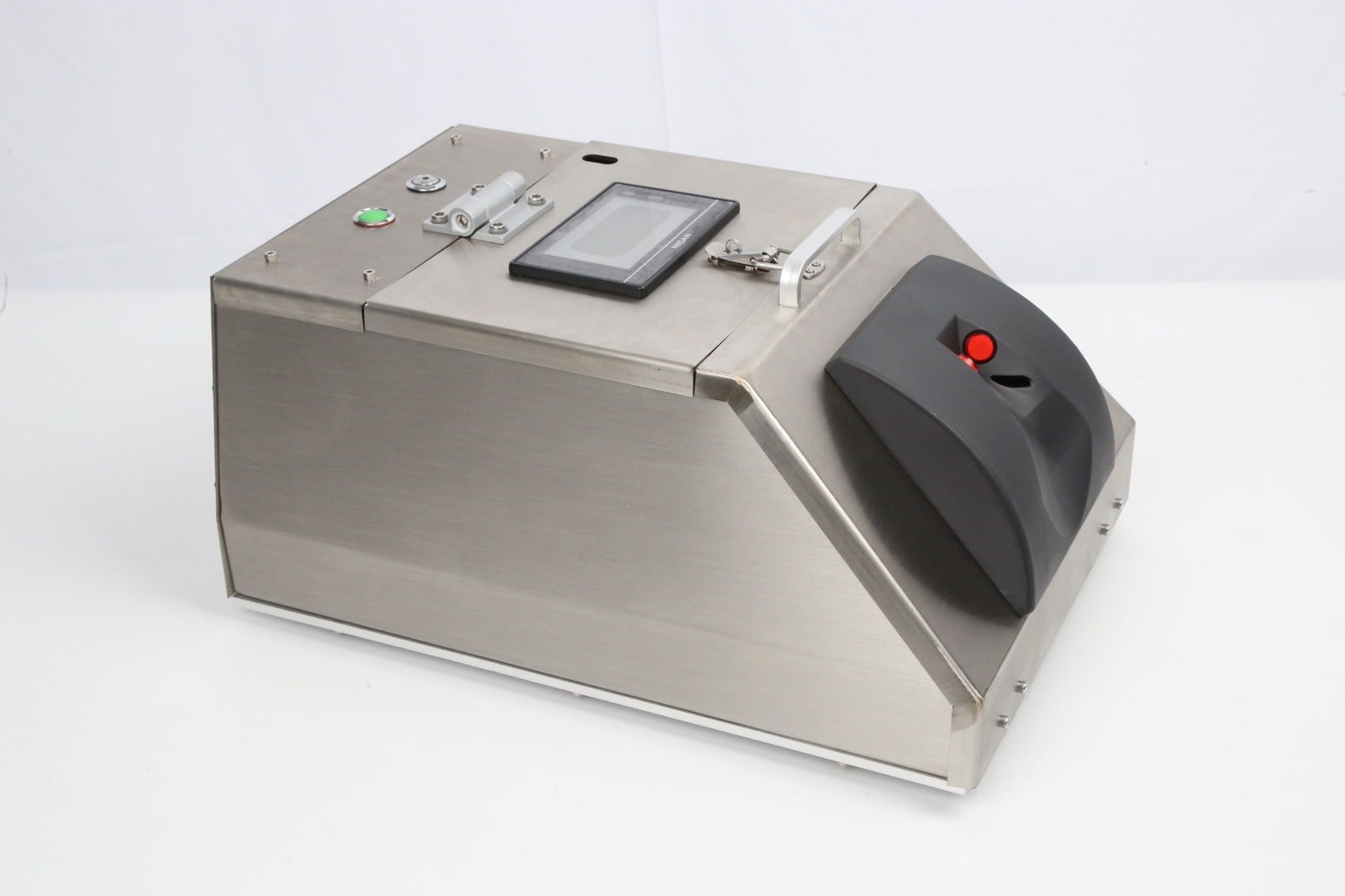

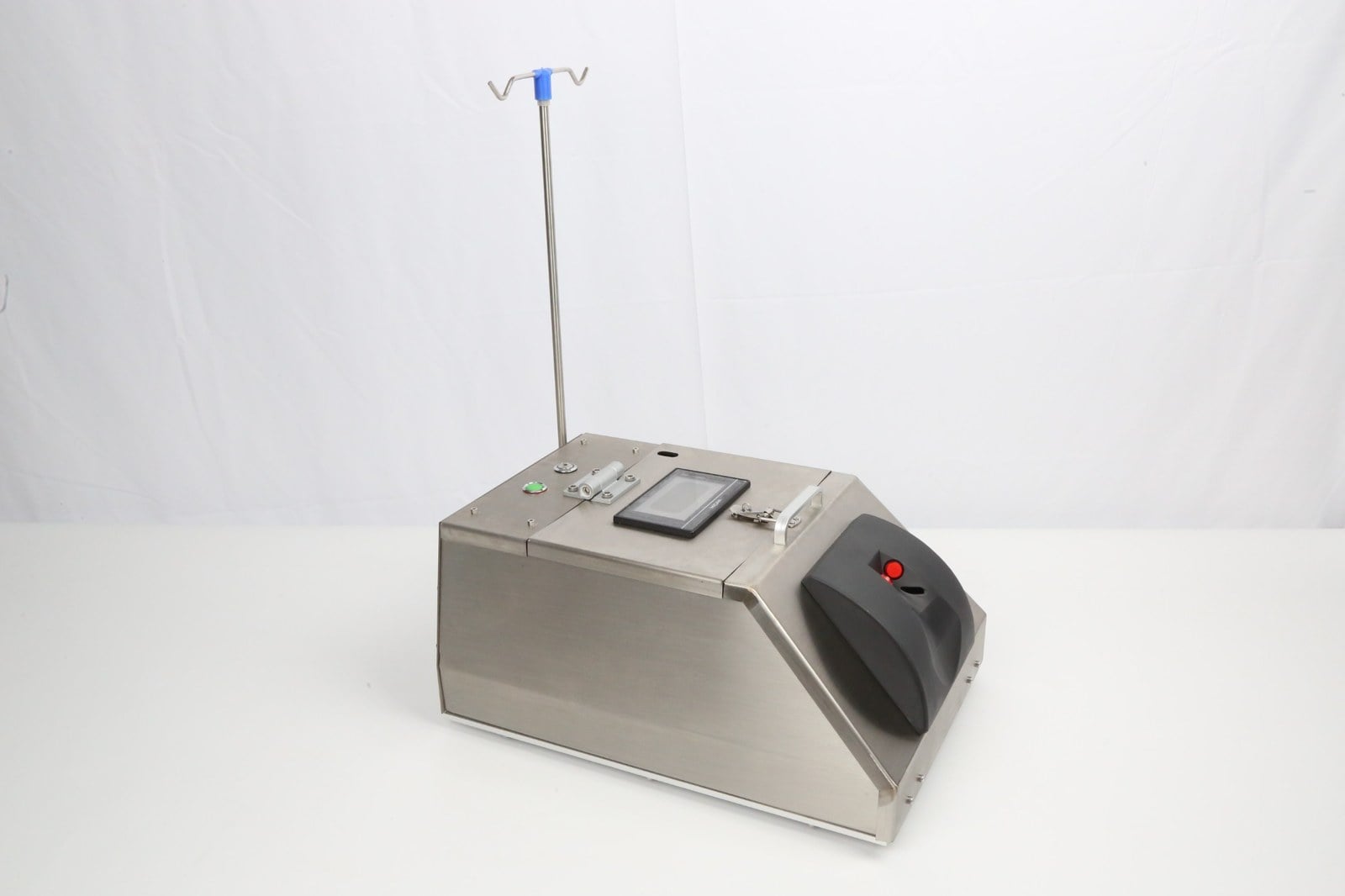

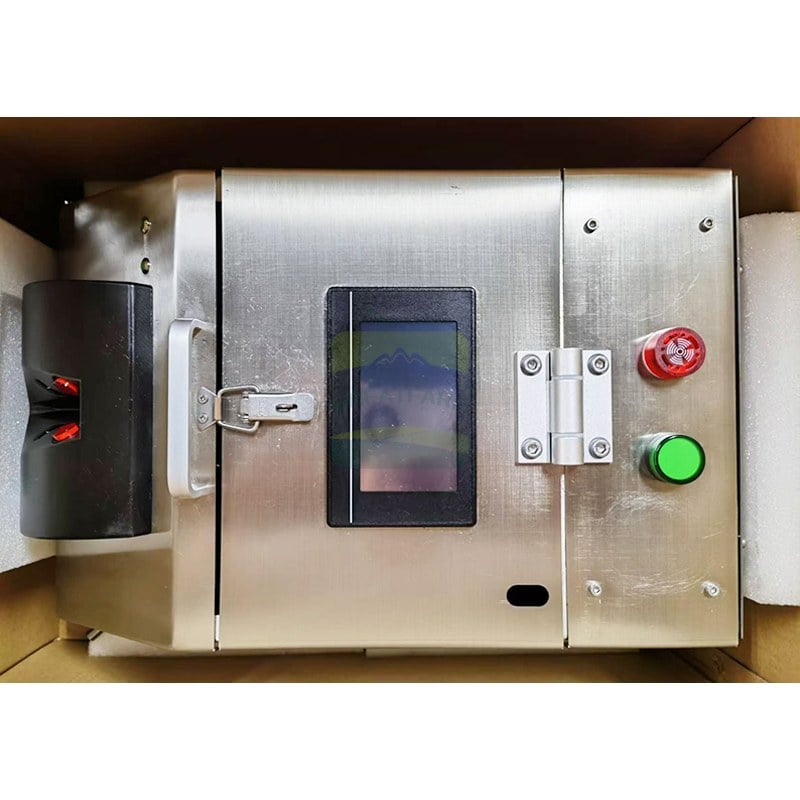

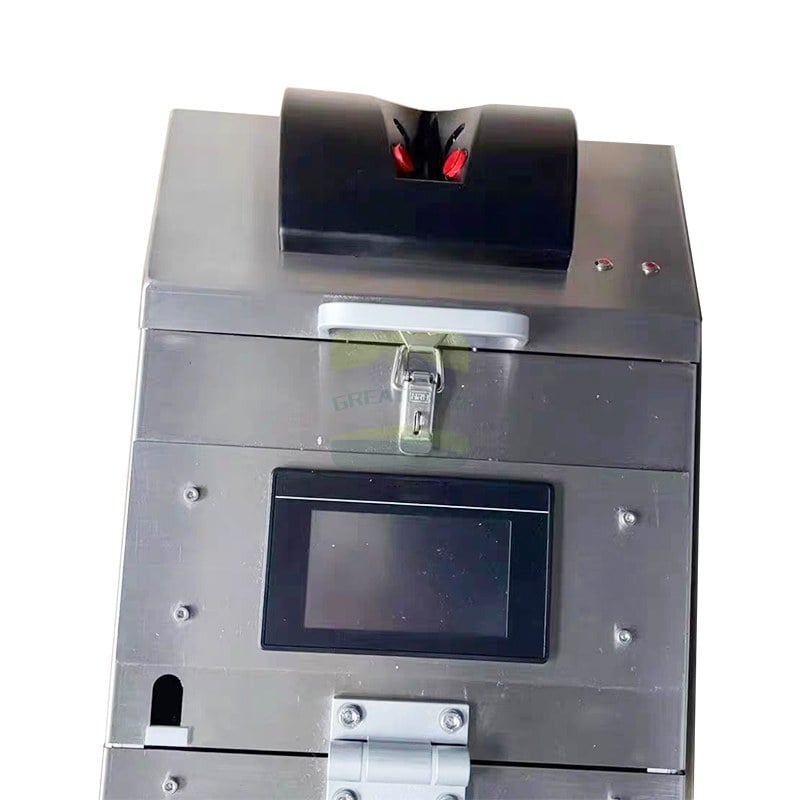

Real product photos show the electric vaccinator body, control interface, trigger area, rear power section and internal syringe components.
Application photos
The machine can be used in a vaccination room or other controlled operation area. The working speed should be arranged according to operator experience, bird handling, vaccine type and animal welfare requirements.
