Day-old Poultry Sex Identification Equipment
An operator-assisted automatic sex identification system designed for hatcheries that need a more standardized chick and duckling sexing workflow. The system combines image recognition, optical sensing, automatic transfer and sorting mechanisms after the operator places the bird at the detection position.
- Overview
- Recommended Products
- Image Recognition
- Optical Sensing
- Automatic Sorting
- 4.3-inch Touch Display
- 4.3-inch touch display for operating and setting the machine
- Non-contact real-time image capture and algorithm detection
- Automatic male/female transfer and sorting after release
- Compact layout for hatchery sexing rooms and packing workflow connection
- Upgraded gender identification
- Hatchery batch sorting
- Chick / duckling processing
- Workflow standardization
Day-old Poultry Sex Identification Equipment
An operator-assisted automatic sex identification system designed for hatcheries that need a more standardized chick and duckling sexing workflow. The system combines image recognition, optical sensing, automatic transfer and sorting mechanisms after the operator places the bird at the detection position.
Built for standardized hatchery sexing, not exaggerated automation
The equipment is used after manual chick positioning. It helps operators complete identification, transfer and male/female sorting in a more consistent process.
Vision-based recognition
Uses image recognition and optical sensing to support real-time sex identification after the bird is placed in the detection area.
Automatic transfer & sorting
After algorithm detection, the equipment can transfer and sort birds into different outlets according to the identification result.
Hatchery-friendly structure
Compact body, touch display, low rated power and mobile bottom supports make it suitable for sexing rooms and hatchery operation areas.
Integrated detection, control and sorting in one workstation
The machine body includes a detection station, control interface and transfer/sorting mechanism. It is intended to reduce repeated manual judgment steps and make the sexing process easier to manage during batch hatchery work.
A clear process for daily hatchery operation
The system still requires trained handling. The equipment assists identification and sorting after the bird is correctly positioned by the operator.
Operator positioning
The operator prepares the chick or duckling and places it at the detection position according to operating procedures.
Real-time detection
The optical sensing and image recognition system captures the required image information for algorithm analysis.
Result confirmation
The system outputs the identification result and guides the following sorting action through the automated mechanism.
Transfer & sorting
After the operator releases the bird, the equipment automatically transfers and sorts it to the corresponding outlet.
Designed for multiple day-old poultry categories
Before purchase, the exact breed, hatching condition and local operating method should be confirmed through sample testing or project communication.
Chicks
Applicable references include white broiler chicks, colored broiler chicks, layer chicks and turkey chicks.
Ducklings
Applicable references include Cherry Valley duck, Zhongxin duck and Maple Leaf duck according to the product information.
Testing recommended
Accuracy should be verified with the buyer's own breed line, incubation batch and operator training level before mass application.
Equipment parameters
The following parameters are based on the referenced product description. Final configuration should be confirmed before order.
| Product Name | Day-old Poultry Sex Identification Equipment |
|---|---|
| Machine Size | 1091 × 988 × 1112 mm |
| Net Weight | Approx. 100 kg |
| Power Supply | AC 200–240V, 50/60Hz |
| Rated Power | 120W |
| Display | 4.3-inch display with touch function |
| Reference Accuracy | Up to 99% under suitable conditions and supported poultry types |
| Reference Throughput | Up to 1400 birds/hour depending on operator handling, bird condition and operating layout |
| Operation Mode | Operator-assisted positioning + automatic identification + automatic transfer/sorting |

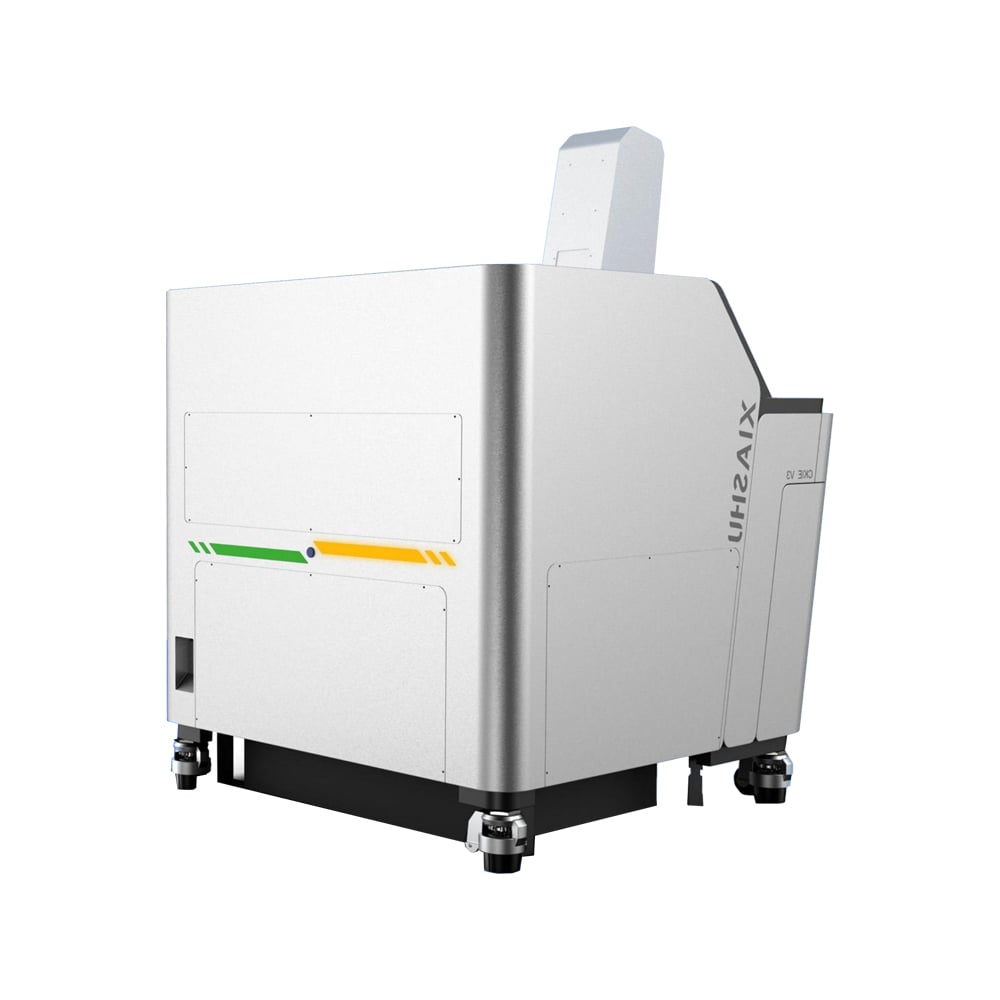

Product appearance and operation side
Clean machine design with integrated detection area, touch control panel and bottom supports for installation in hatchery processing rooms.
Compact enclosed housing
The enclosed body helps protect internal modules and keeps the product appearance clean for hatchery use.
Operation and detection side
The front operation side combines the detection position, control area and discharge/sorting structure.
Suitable for hatcheries that need a more standardized sexing workflow
This equipment is not a fully manual-free solution. It is best used where trained staff handle bird positioning and the machine assists recognition, transfer and sorting.
