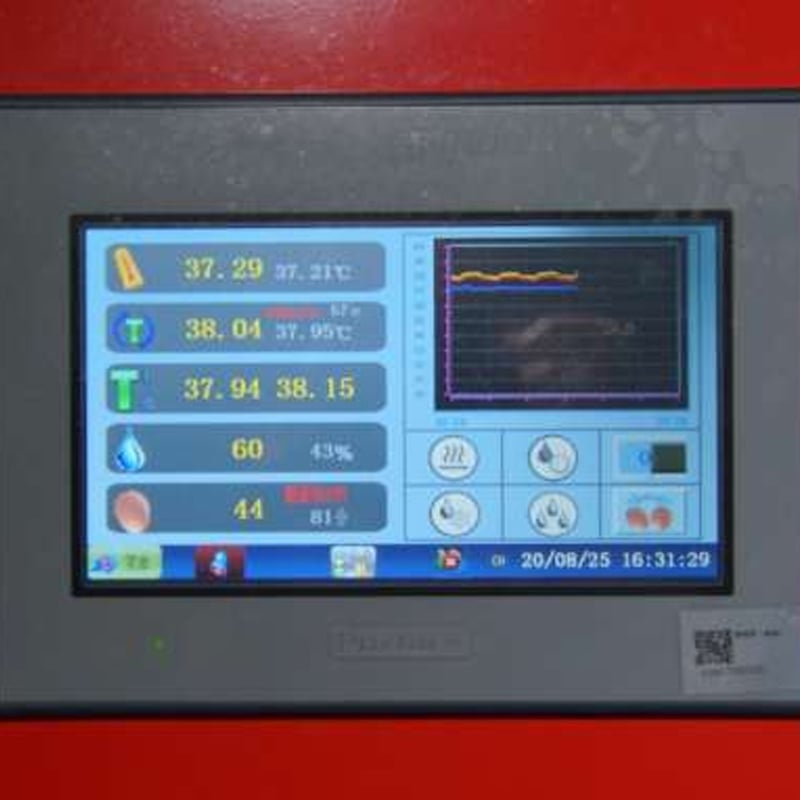

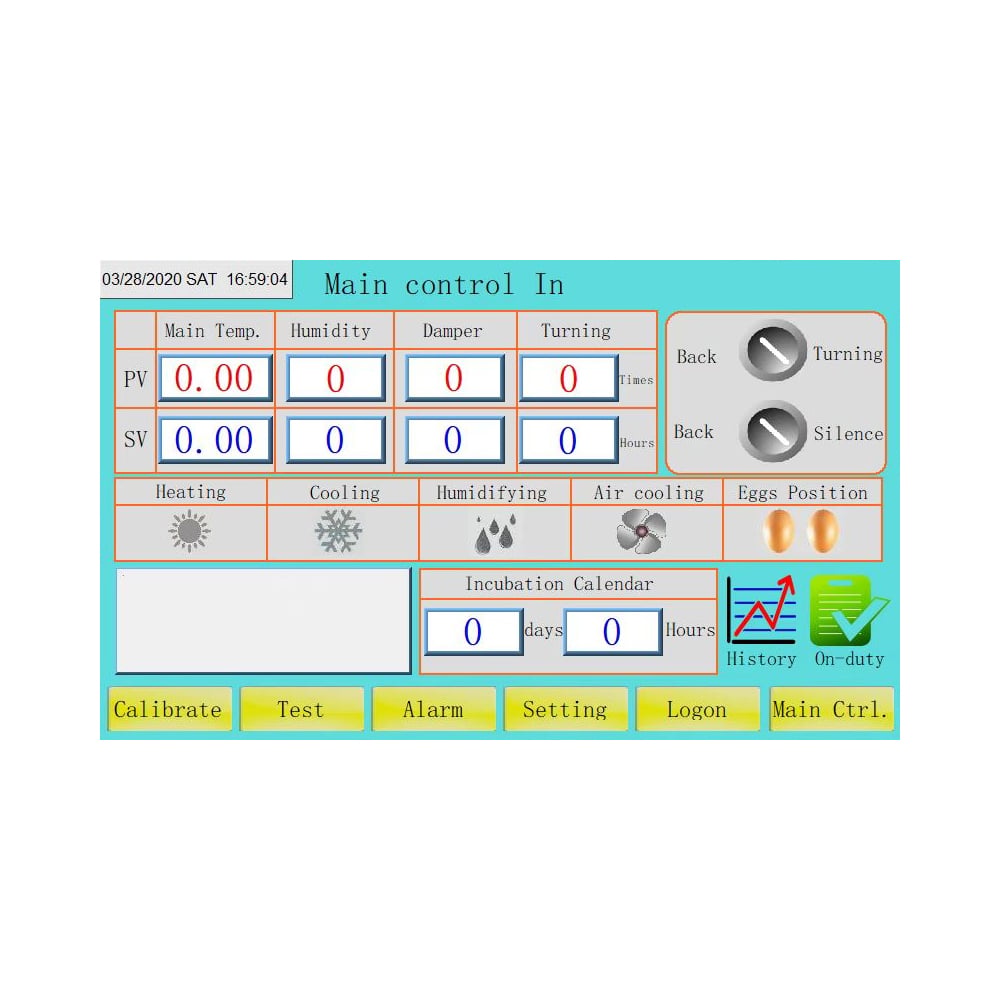

Touch Screen Control System
Full-cycle parameter setting, one-button operation, alarm management and historical data viewing help simplify daily hatchery operation.
Industrial 90720 Eggs Tunnel Type Multi Stage Chicken Egg Incubator with PLC Fuzzy Control and Pneumatic Egg Turning
A commercial tunnel incubator solution designed for stable temperature, uniform airflow, accurate humidity control and large-scale egg setting. The system integrates touch screen control, high-precision sensors, automatic turning, copper cooling coils and durable egg trolley operation for professional hatchery projects.
- Overview
- Recommended Products
- Color painted sandwich panel structure improves insulation and chamber stability.
- Automatic turning system helps eggs receive uniform heat and air contact.
- Copper cooling coils, stainless steel heating pipe and humidifying system work together for stable microclimate control.

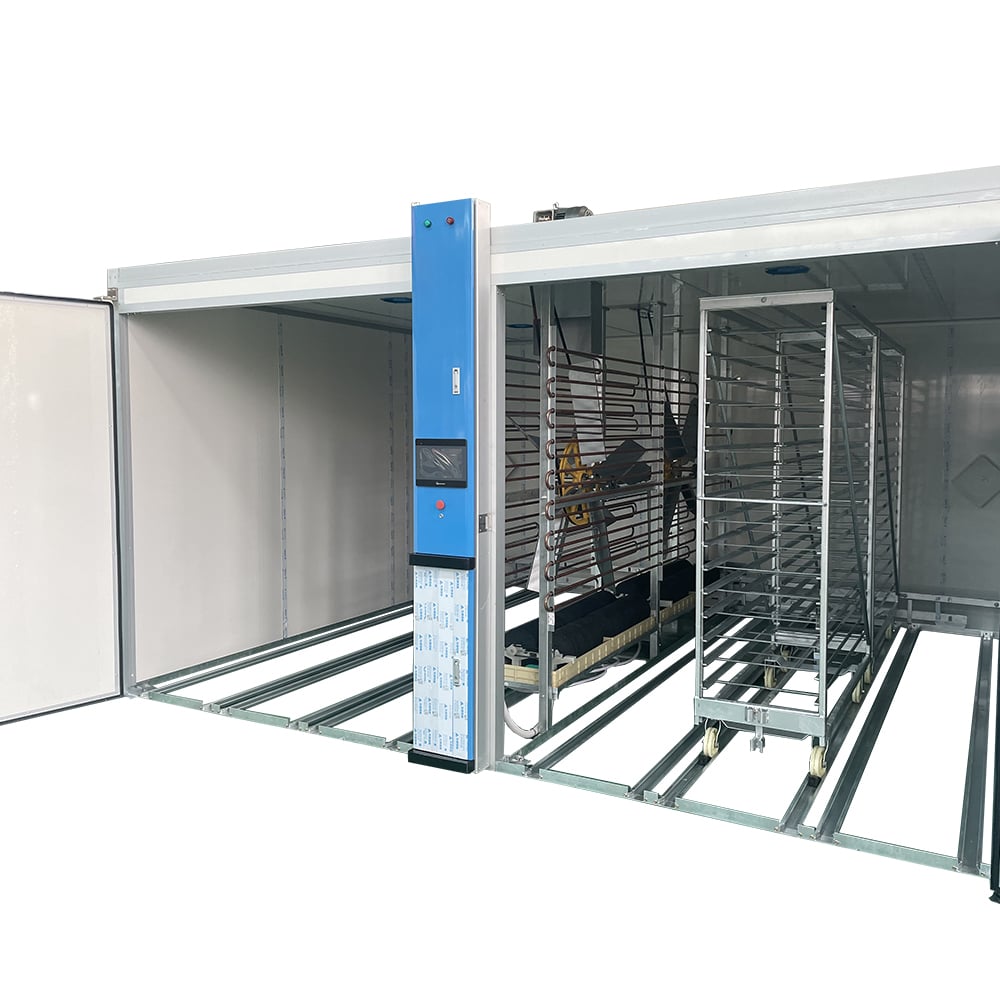

- Movable egg trolleys and rails make loading, transfer and maintenance easier for operators.

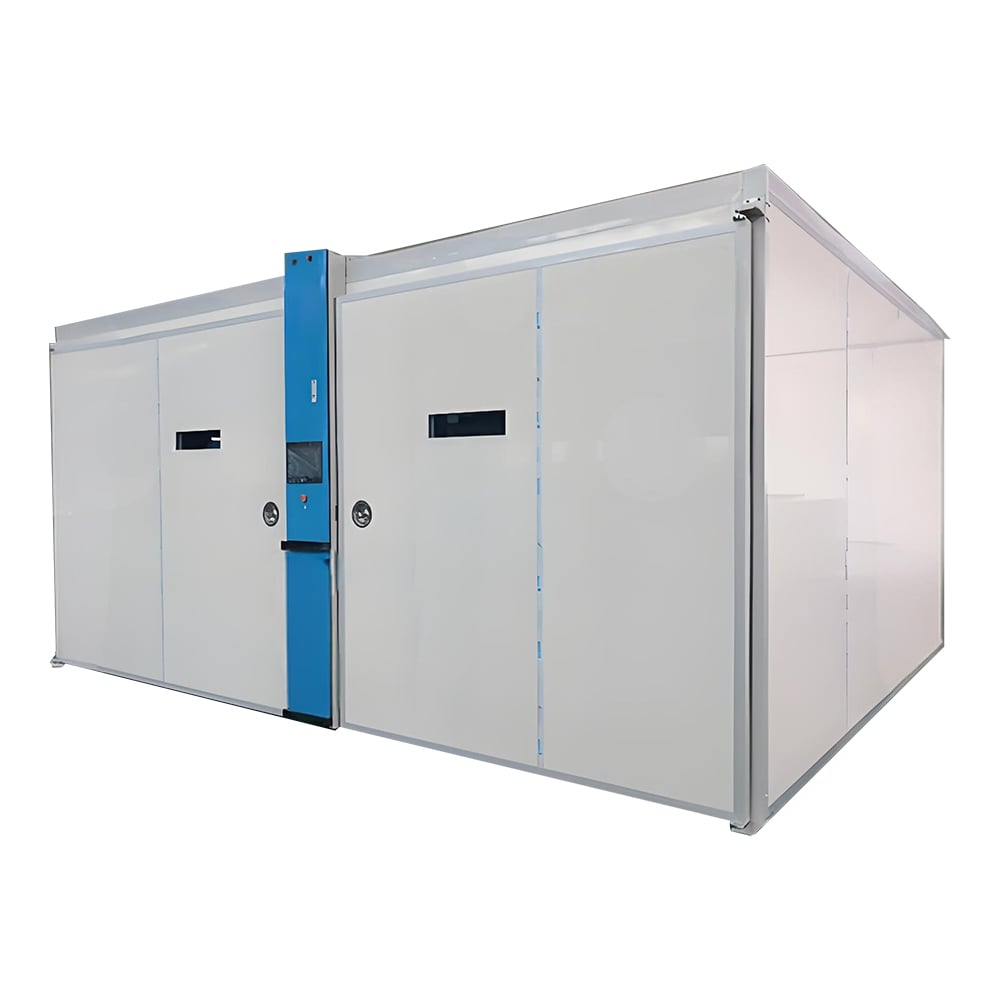

GFXT Series Hatchery Equipment
Tunnel Type Incubator for High-Capacity Poultry Hatcheries
A commercial tunnel incubator solution designed for stable temperature, uniform airflow, accurate humidity control and large-scale egg setting. The system integrates touch screen control, high-precision sensors, automatic turning, copper cooling coils and durable egg trolley operation for professional hatchery projects.
36–39℃Temperature control range
40–80%RHHumidity control range
43±2°Egg turning angle for chicken eggs
90 DaysIncubation data record
Product Overview
Large-capacity incubation with precise climate management.
The tunnel type incubator is suitable for commercial hatcheries, breeding farms and poultry integration projects that require batch setting, centralized management and reliable hatching performance. Its insulated chamber, air circulation system and intelligent control panel help maintain a balanced incubation environment during the whole hatching cycle.
Core Systems
Complete incubator system for stable hatching operation
Every key module is designed around easy operation, accurate control, energy saving and safe incubation. The system can be configured for different hatchery scales and different egg setting capacities.
Temperature & Humidity Control
High-precision temperature and humidity sensors support stable incubation conditions and reduce repeated manual calibration.
Airflow & Damper Control

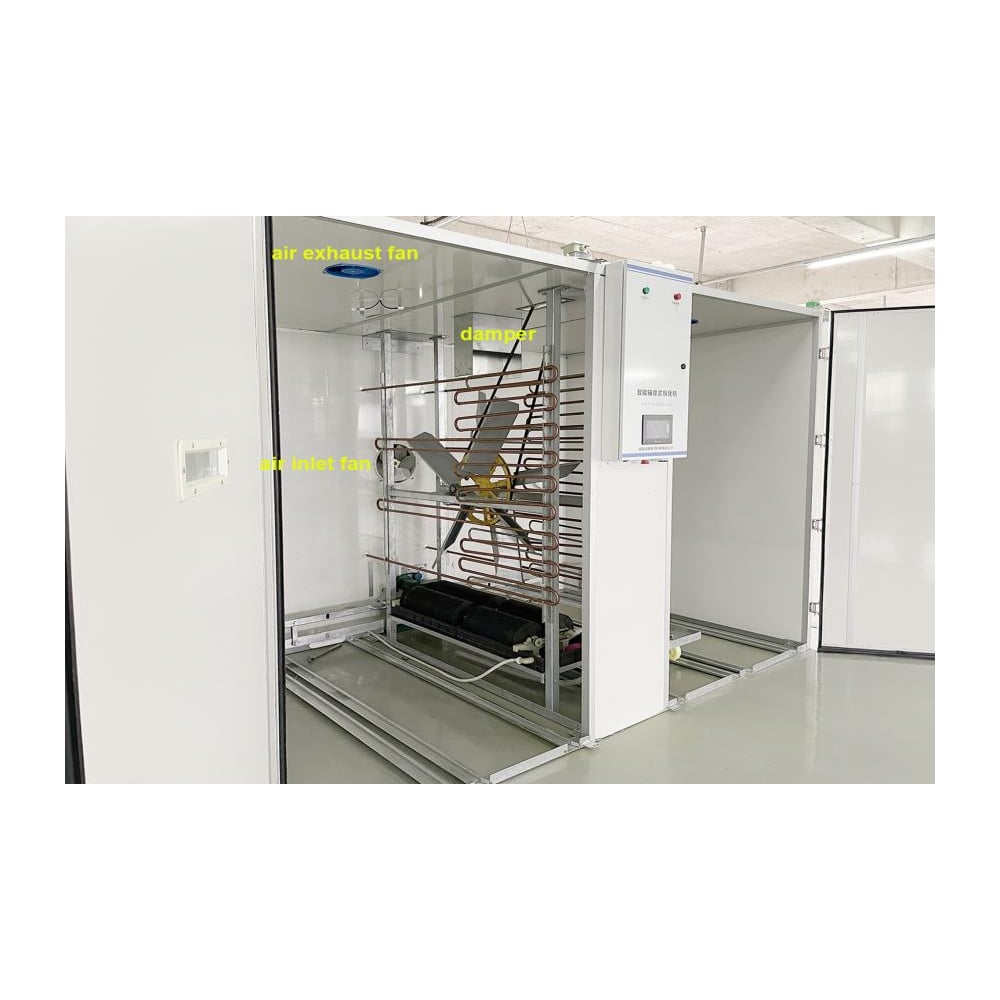

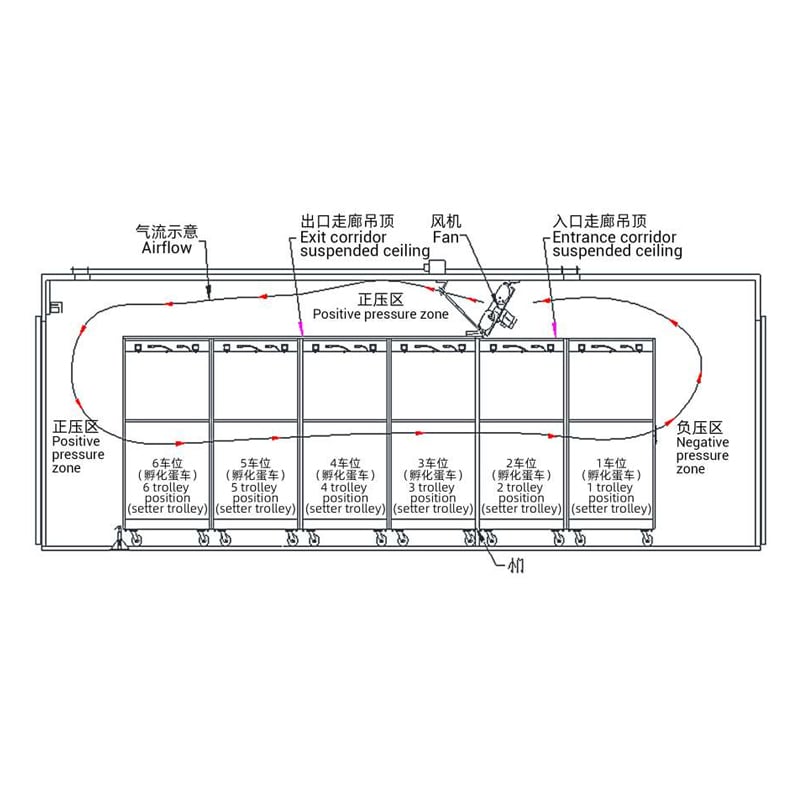

Air inlet, exhaust fan and damper design help distribute fresh air and remove excess heat for uniform internal circulation.
Heating & Cooling Modules

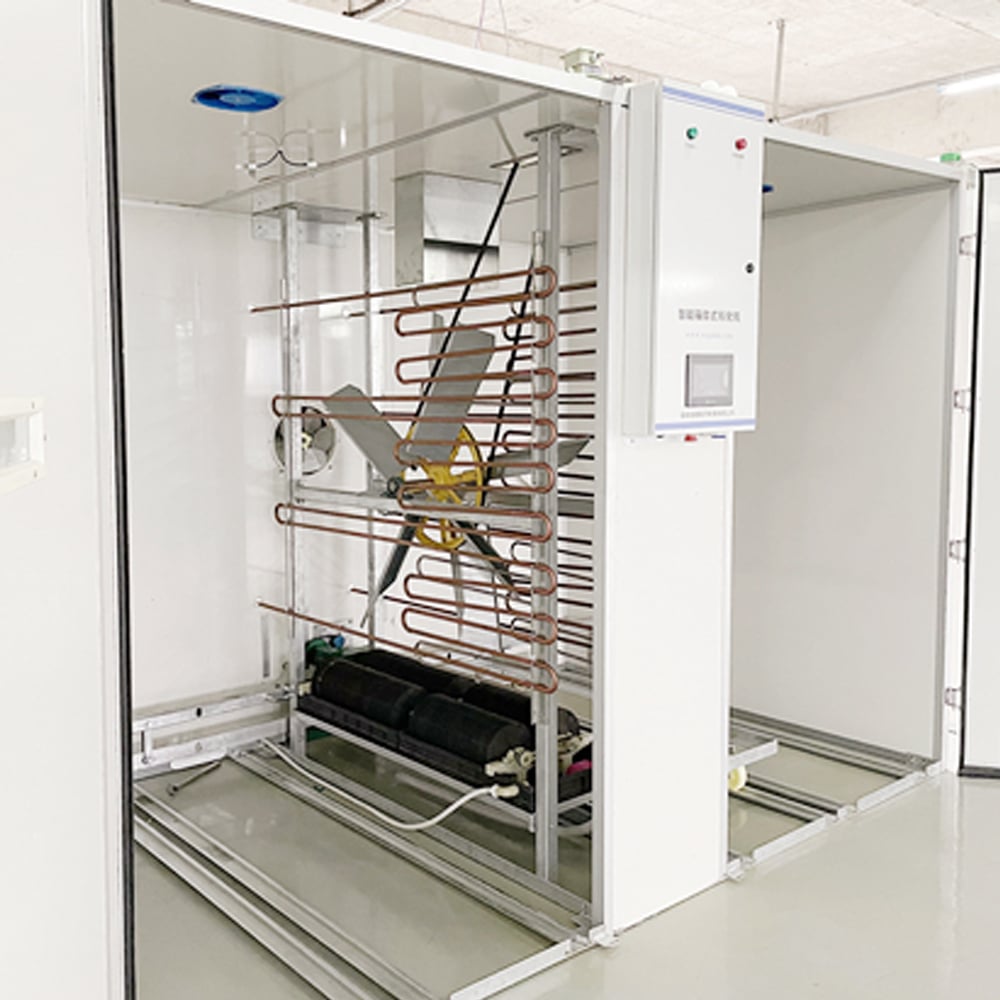

Stainless steel heating pipes and copper cooling coils provide rapid response for different incubation stages and ambient conditions.
Egg Trolley & PP Egg Trays
Hot-dip galvanized trolley frames and PP egg trays support high-density loading, smooth movement and long-term hatchery use.
Data Record & Alarm System
The controller records incubation data and supports fast troubleshooting through alarms, calibration, testing and setting pages.
Key Advantages
Designed for easier operation and safer hatching
The equipment combines modular electrical design, imported control components, efficient air movement and stable chamber insulation to help hatcheries improve daily management efficiency.
Modular Control
Integrated electrical modules make the circuit clearer, easier to understand and more convenient for maintenance.
High-Precision Sensors
Stable temperature and humidity sensing helps reduce hatching fluctuation and unnecessary manual correction.
Energy-Saving Motor
ECM motor technology improves motor efficiency and helps lower daily operating energy consumption.
Main & Backup Control
Main and sub-control CPU design supports safe switching and helps protect the incubation process.
Model Options
GFXT incubator model specifications
Two mainstream capacities are available for different hatchery layouts. Final configuration can be adjusted according to egg type, house layout, power supply and project operation requirements.
GFXT-38400 Incubator
Compact high-capacity model for commercial chicken egg incubation.
| Capacity | 38,400 chicken eggs per set |
|---|---|
| Dimensions | 3370 × 3850 × 2630 mm |
| Panel Structure | 44 mm color painted steel sandwich panels |
| Control Panel | 7-inch touch screen control panel |
| Cooling / Heating | Copper cooling coils and stainless steel heating pipe |
| Egg Trolley | 8 trolleys per set, 16 tiers, 4,800 eggs per trolley |
| Egg Tray | PP material, 150 eggs per tray, 256 trays per incubator |
| Power Supply | 3 phases 5 wires, 380V 50Hz |
| Full Load Power | 11.2 kW |
GFXT-57600 Incubator
Larger model for hatcheries requiring higher single-set egg capacity.
| Capacity | 57,600 chicken eggs per set |
|---|---|
| Dimensions | 4660 × 4252 × 2625 mm |
| Panel Structure | 75 mm wall panel, 50 mm door panel |
| Control Panel | 10-inch touch screen control panel |
| Cooling / Heating | Copper cooling coils and stainless steel heating pipe |
| Egg Trolley | 12 trolleys per set, 16 tiers, 4,800 eggs per trolley |
| Egg Tray | PP material, 150 eggs per tray, 384 trays per incubator |
| Power Supply | 3 phases 5 wires, 380V 50Hz |
| Full Load Power | 13.5 kW |
General control reference: temperature range 36–39℃, humidity range 40–80%RH, insulation resistance greater than 2MΩ, egg turning angle 43±2° for chicken eggs and 50±2° for duck eggs. Specifications can be adjusted according to actual hatchery project requirements.
Product Configuration
What is included in the tunnel incubator solution?
From chamber structure to control software, the system is arranged as a complete equipment package for efficient installation, commissioning and operation.

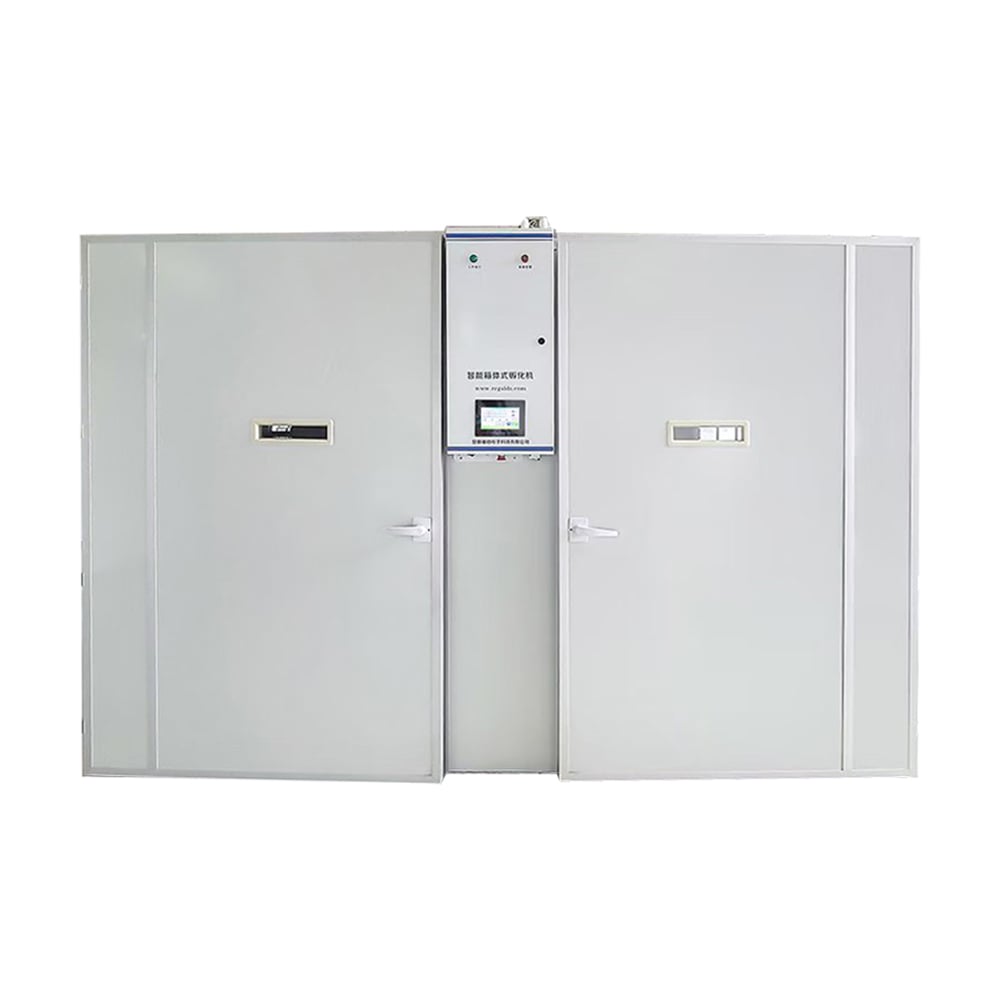

Insulated Incubation Chamber
Color painted sandwich panels, sealing doors, observation windows and chamber structure for stable thermal performance.
Control Cabinet & Screen
Touch screen interface, imported CPU, alarm function, historical data record, testing and calibration pages.
Ventilation & Damper
Air inlet fan, exhaust fan and damper system for air exchange and internal pressure balance.
Heating & Cooling
Stainless steel heating pipe, copper cooling coil and automatic climate control for different incubation phases.
Humidifying System
Spinning disk humidifying system supports accurate humidity adjustment during incubation.
Turning System
Worm-gear turning mechanism provides stable and repeatable egg turning movement.

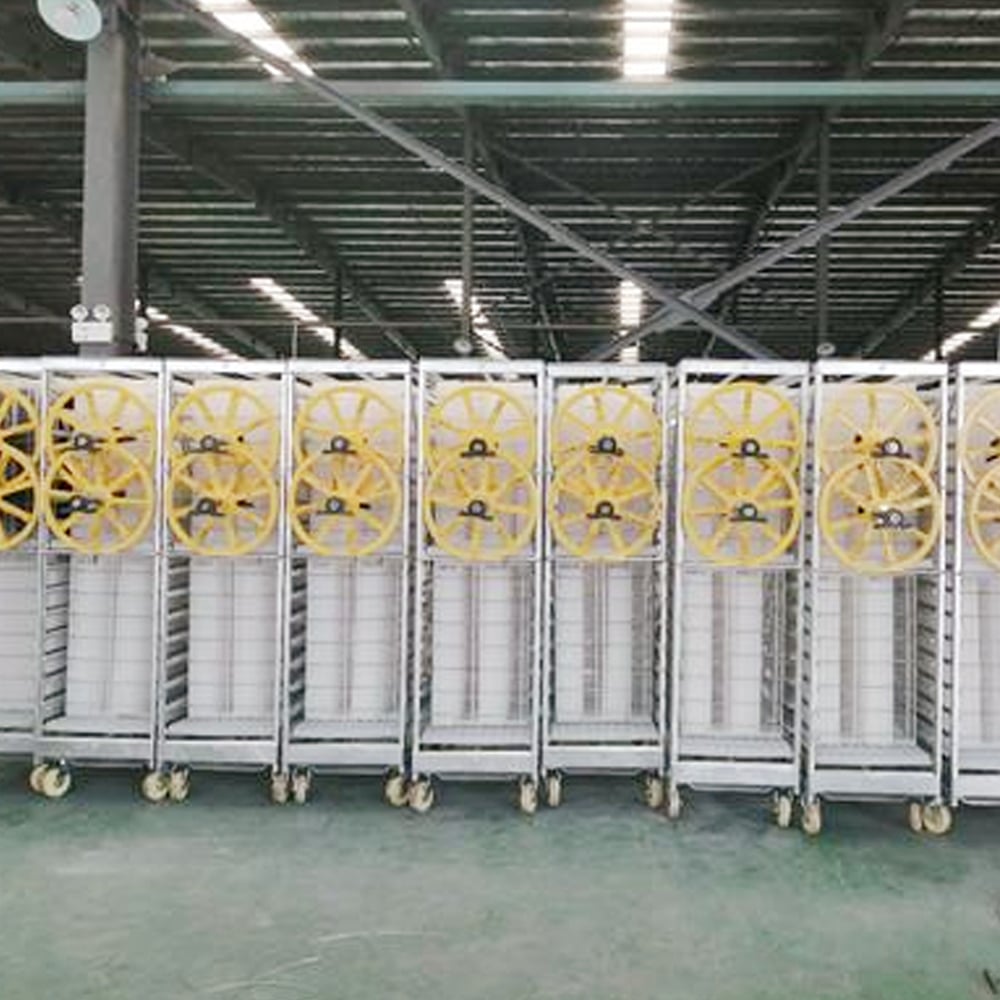

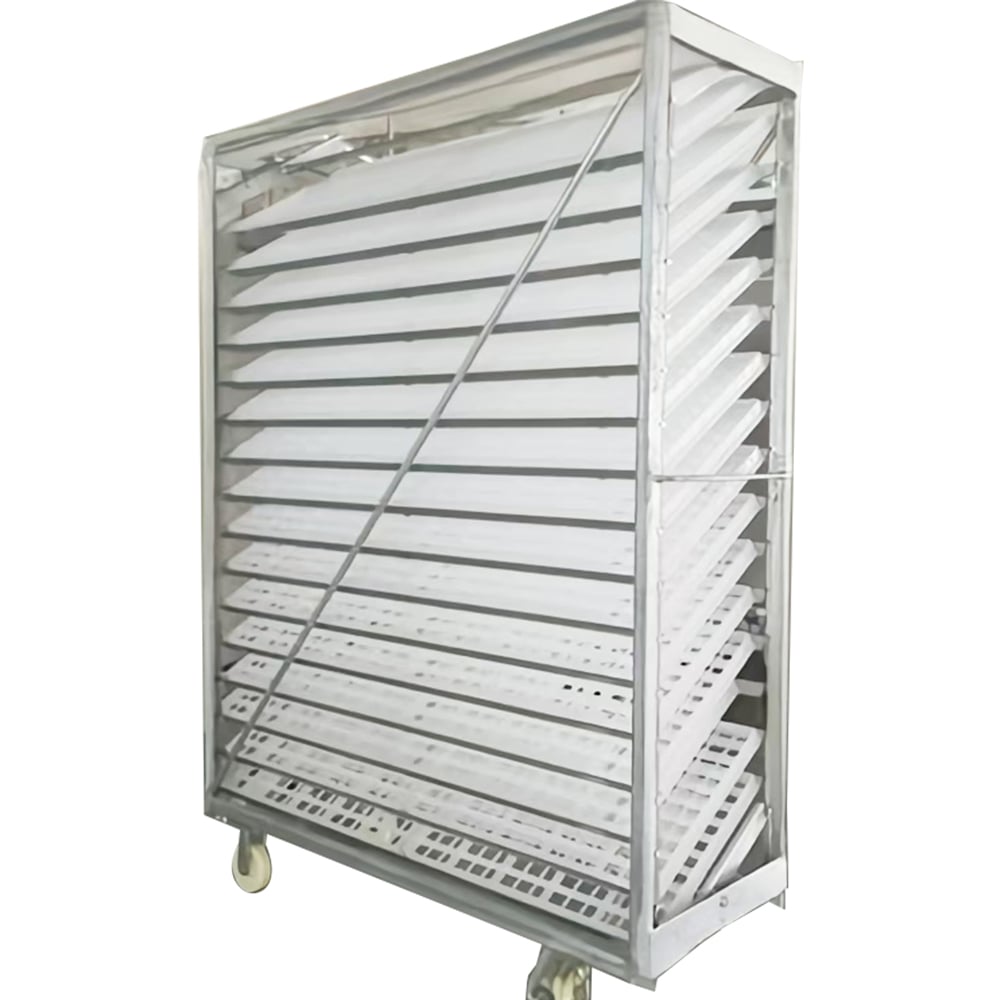

Egg Trolleys
Hot-dip galvanized trolley frame and bottom frame, designed for heavy-duty hatchery movement.
PP Egg Trays
Durable PP egg trays with 150-egg loading design for neat placement and easy transfer.
Installation Support
Layout advice, installation guidance, commissioning checklist and operator training can be supplied for project delivery.
Detail Gallery
Real product details and working structure

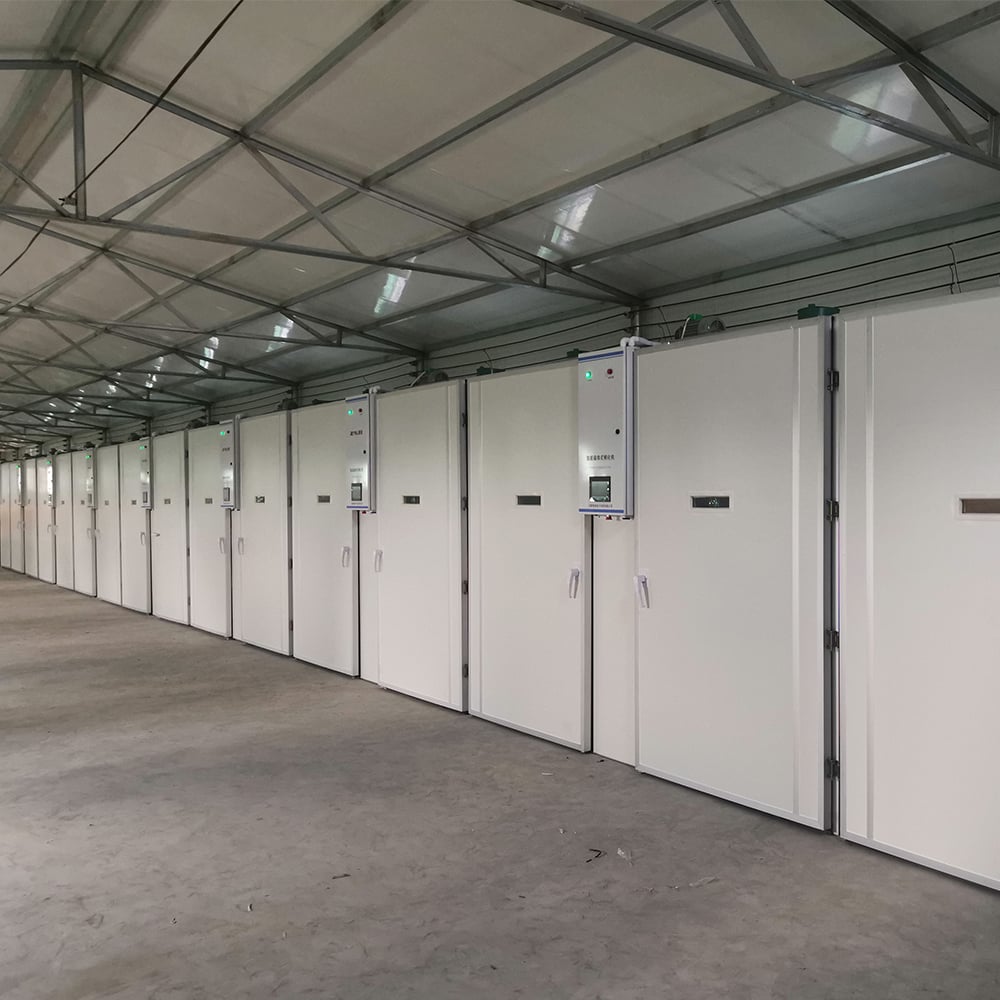

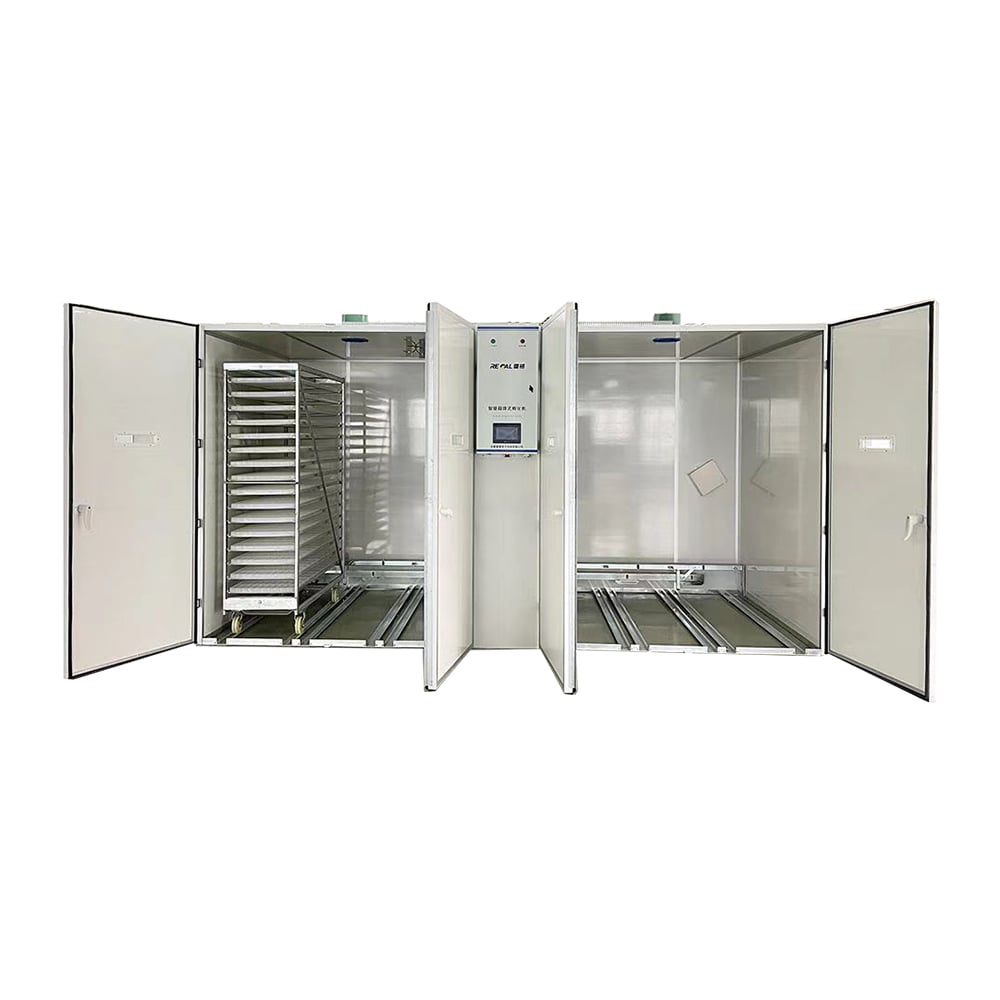

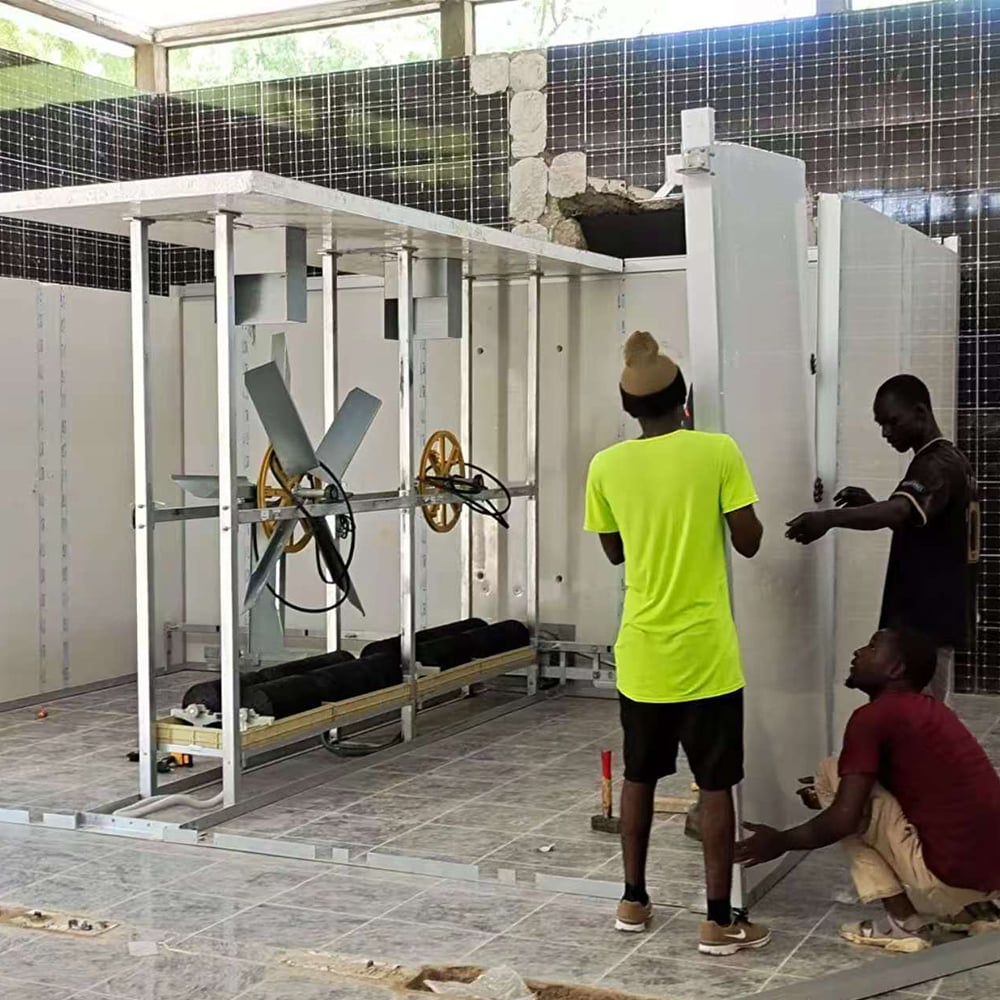

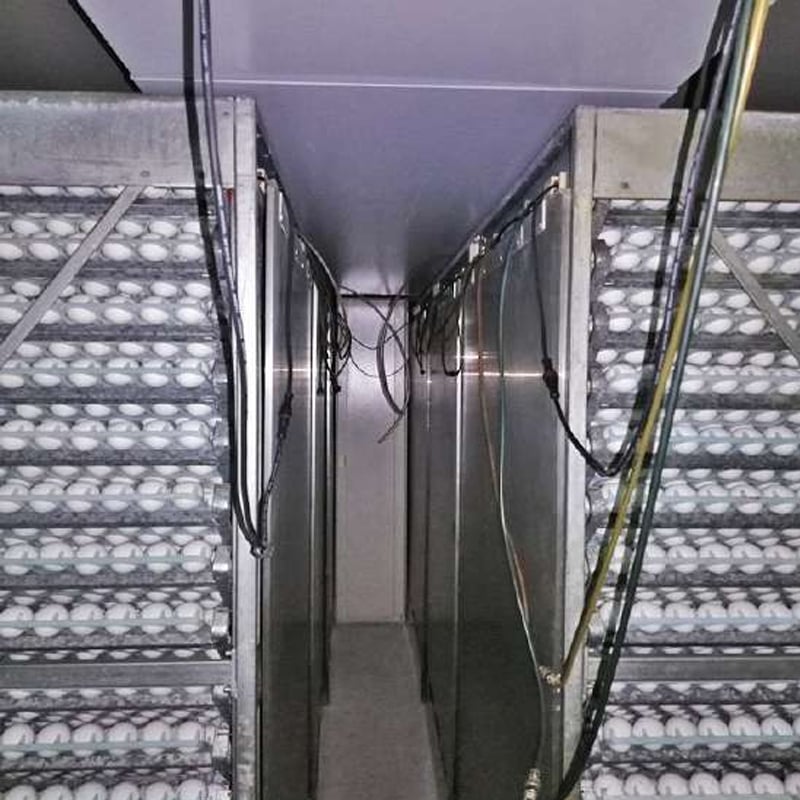

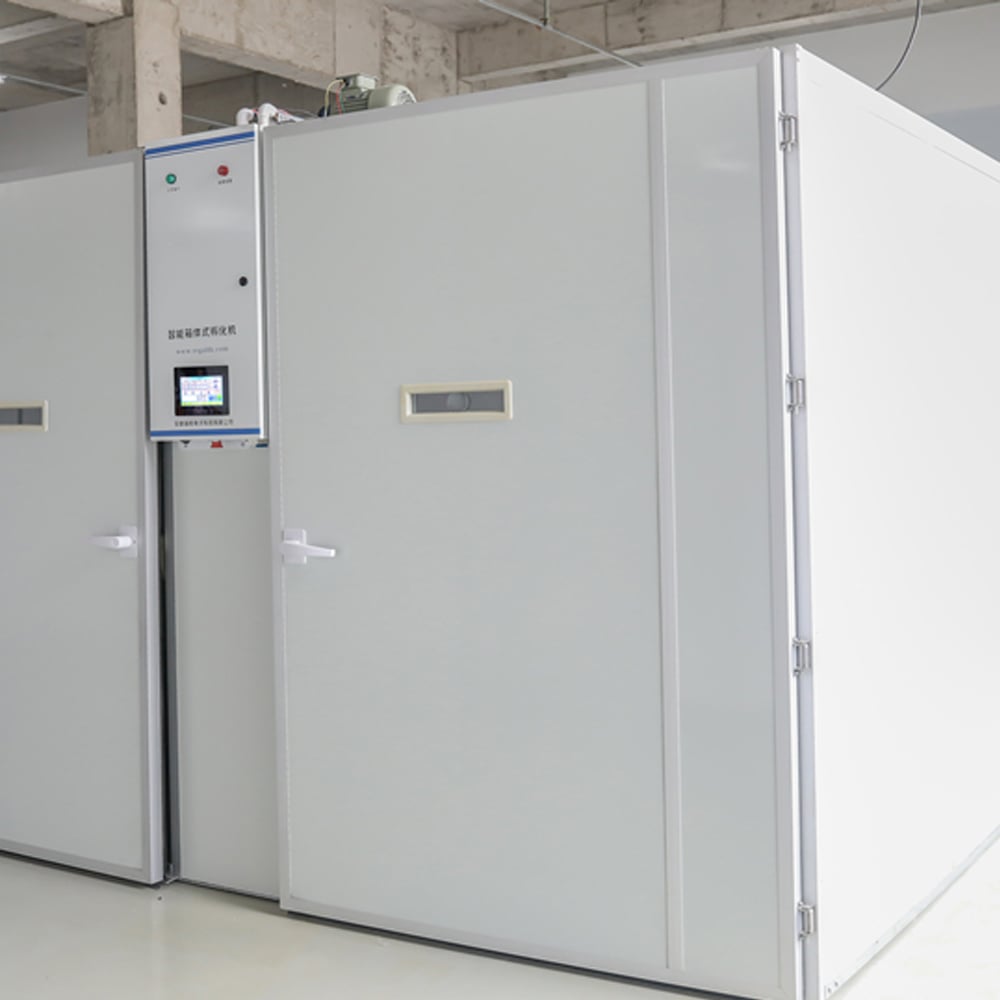

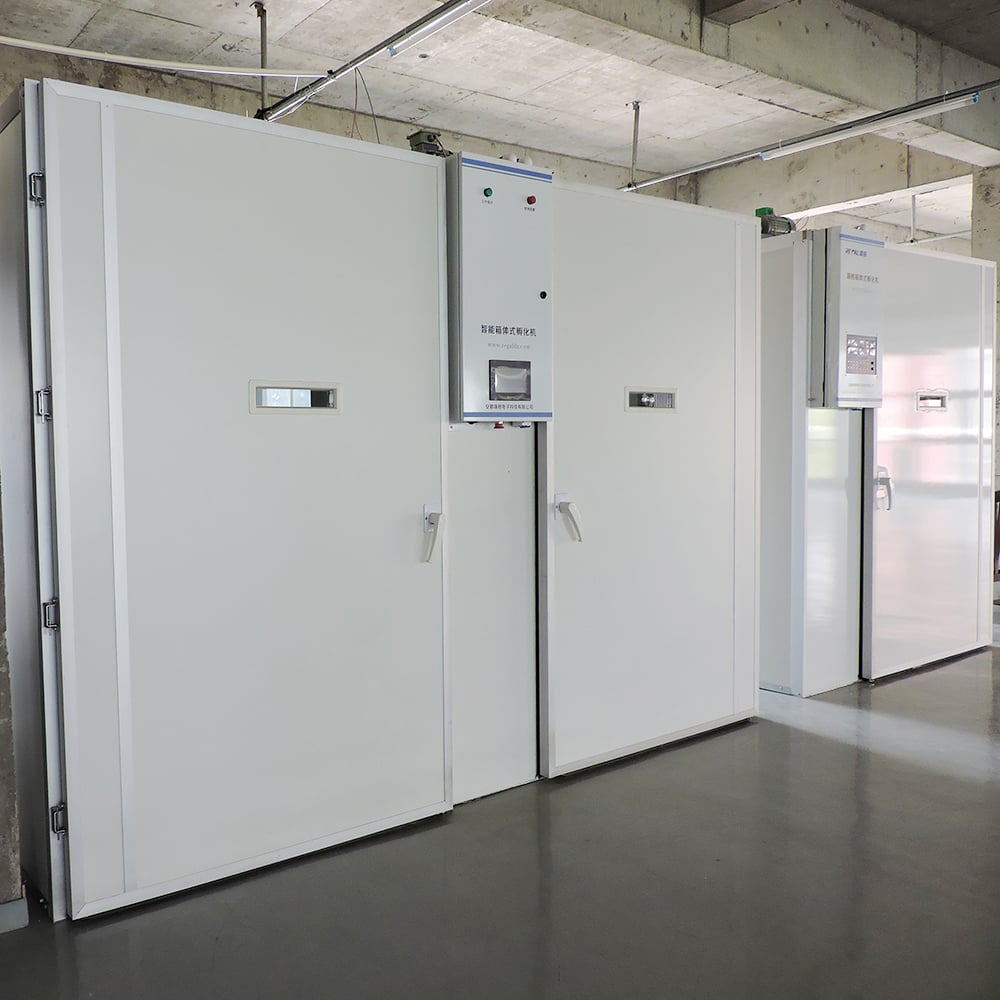

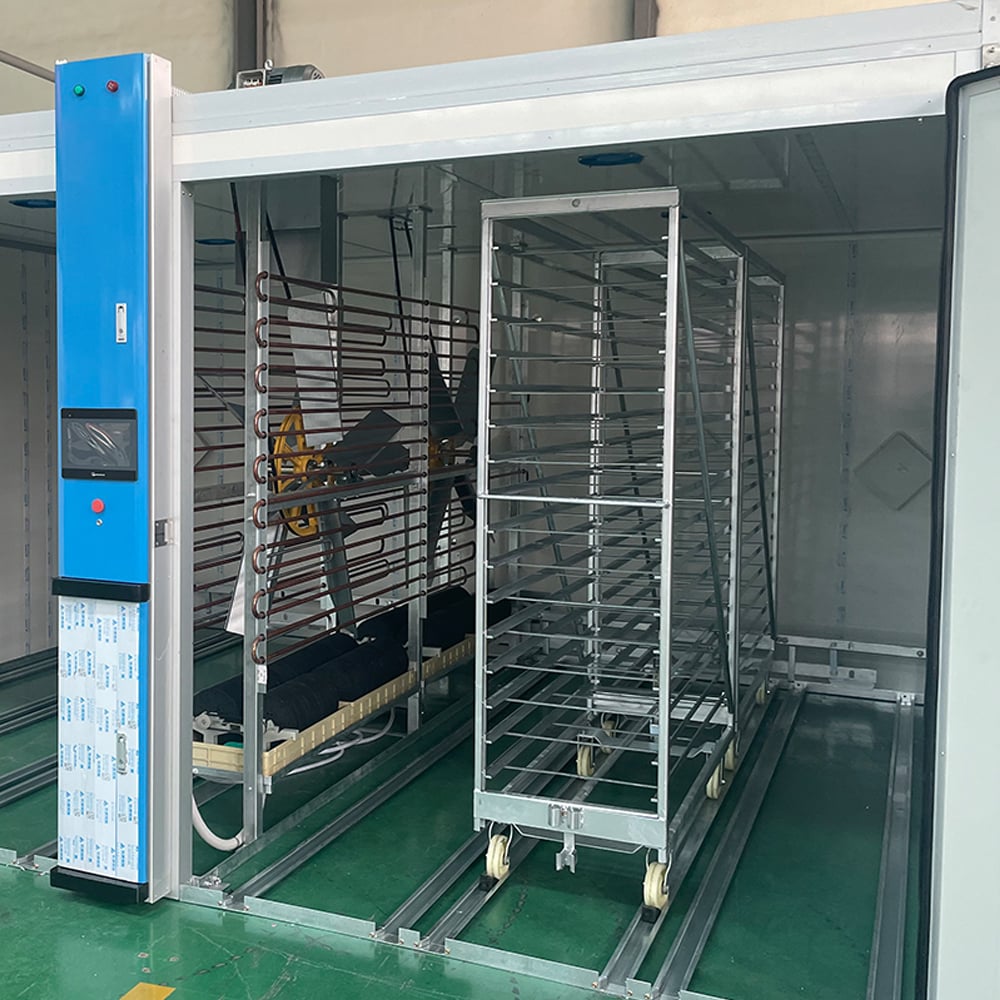

The photos show the external chamber, inner air circulation structure, trolley system, touch screen interface, on-site installation and production-ready incubator arrangement.
Operation Flow
Professional hatchery operation process
The tunnel incubator helps standardize hatchery operation from egg loading to hatching data management, reducing manual uncertainty and improving daily workflow.
Egg Loading
Eggs are placed in PP trays and loaded onto hot-dip galvanized trolleys according to batch plan.
Parameter Setting

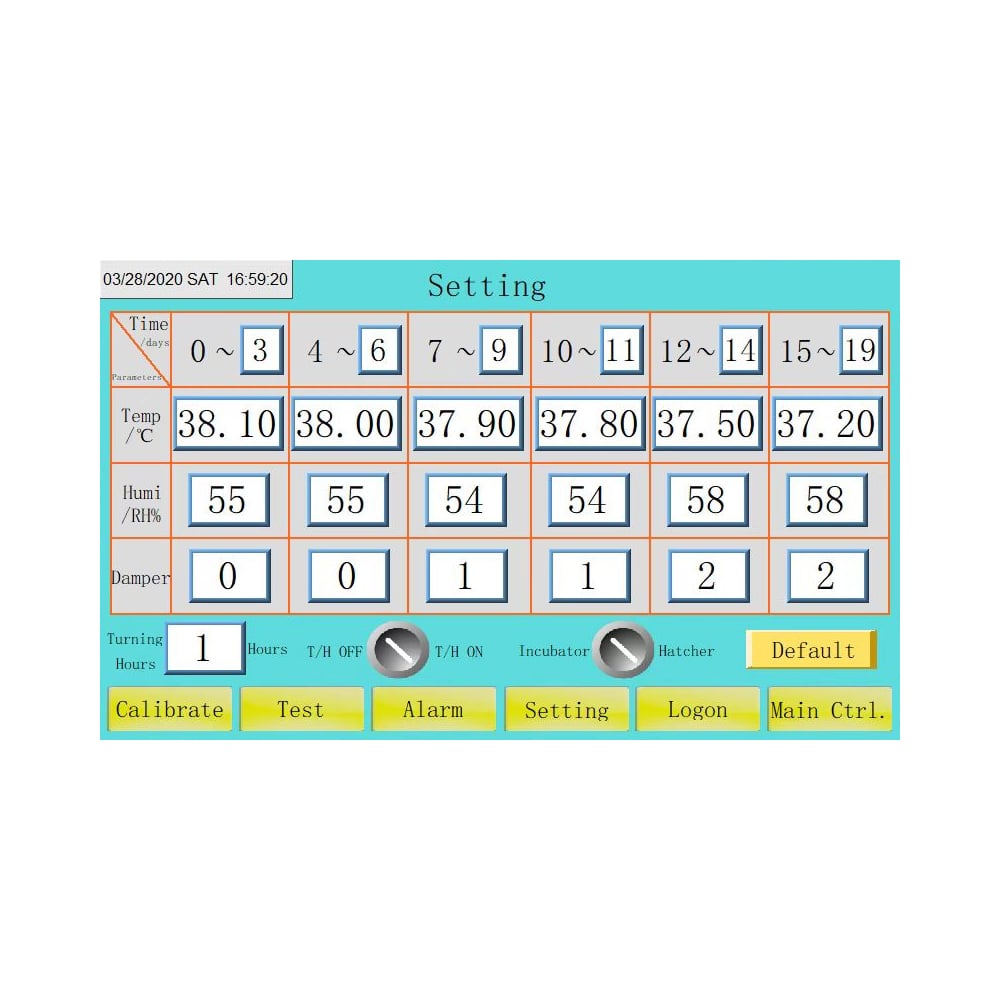

Temperature, humidity, turning frequency and stage settings are configured through the touch screen.
Automatic Incubation
The system manages heating, cooling, humidifying, ventilation and turning during incubation.
Data Review
Historical records and alarms help managers check operation status and optimize hatchery performance.
Hatchery Project Support
Build a reliable commercial hatchery with a complete incubation solution.
We can provide model selection, hatchery layout advice, equipment configuration, installation guidance and after-sales support according to egg capacity, house size, power supply and local climate conditions.
